Bend: Straight
Wire Type: Solid
Insulation: Fiberglass

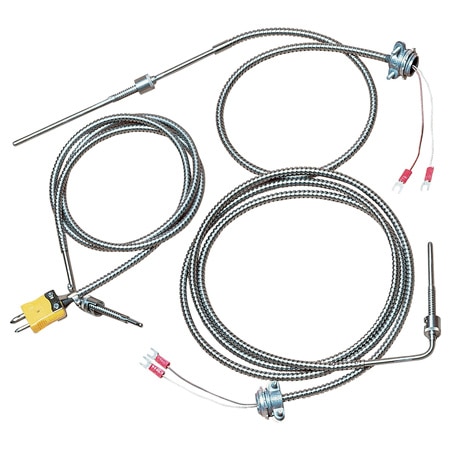

Probe Type: Bayonet Style Thermocouple Probes
Wire Gauge: 20 AWG
Cable Length: 60 in
Probe Length: 3.5 in
probe-length: 3.5 in
Junction Type: Ungrounded
Cable Diameter: 0.275 in
Cable Material: Stainless Steel
Probe Diameter: 0.1875 in
Insulation Note: Glass Braid Insulated 20 Gage Solid Thermocouple Wire
Number of Wires: 2
Sheath Material: 304 Stainless Steel
Thermocouple Type: E
Alloy Material (+): Chromel
Alloy Material (-): Constantan
Color Code Standard: ANSI
Cold End Termination: 1
Number of Connectors: N/A
Electrical Connection: Spade Lugs
electrical-connection: Spade Lugs
Temperature Probe Style: Immersion Probe
Temperature Sensor Type: Thermocouple
Process Temperature, Max: 730 °C
Process Temperature, Min: 0 °C
Operating Temperature, Max: 480 °C
Operating Temperature, Min: 0 °C
