OMEGA M12JSS-M3-U-200-E Thermocouple Probes with Mounting Threads and M12 Connectors (Thermocouple, J, 520 °C) | EMINKH.COM

J-Type Temperature Sensor

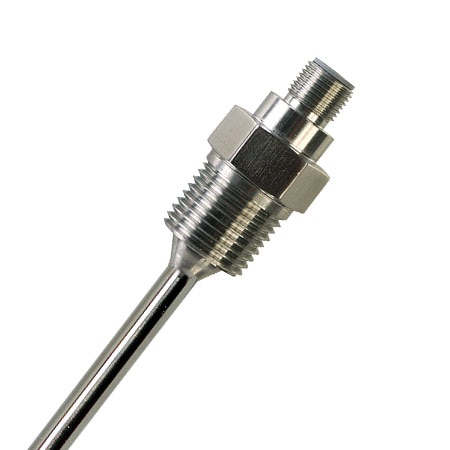

OMEGA M12JSS-M3-U-200-E Thermocouple Probes with Mounting Threads and M12 Connectors (Thermocouple, J, 520 °C)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

OMEGA M12JSS-M3-U-200-E Thermocouple Probes with Mounting Threads and M12 Connectors (Thermocouple, J, 520 °C)

Name: OMEGA M12JSS-M3-U-200-E Thermocouple Probes with Mounting Threads and M12 Connectors (Thermocouple, J, 520 °C)
Brand: OMEGA

ModelM12JSS-M3-U-200-E

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Vibration: Vibration Tested at 3g’s Between 5 and 500 Hz for 3 Hours in the Axial and Transverse Axes

Probe Length: 200 mm

Junction Type: Ungrounded

Probe Diameter: 3 mm

Sheath Material: 304 Stainless Steel

Thermocouple Type: J

Alloy Material (+): Iron

Alloy Material (-): Constantan

Color Code Standard: ANSI

Electrical Connection: M12 4 pin Male

Process Connection Size: 8 mm

Process Connection Type: NPT Male

Temperature Sensor Type: Thermocouple

Process Temperature, Max: 520 °C

Process Temperature, Min: 0 °C

Connector Temperature, Max: 85 °C

Connector Temperature, Min: -50 °C

Datasheet
