Otsuka LED-OSL-4 LED Illuminated mangifire (2x, 4x)

Type: free arm type

Lens:

Magnification: 2x, 4x

Allowable lens dimension (mm): 100×140

Lens Material: Optical glass

Working distance (mm): 2x/160, 4x/110

Lens Type: Fixed

Multi-coating Setting: Not available

Lighting:

Light source: White LEDs 2 pcs.

Wavelength: 400 nm

Input voltage: 100〜240V: 50/60 Hz: Plug Type A

Power consumption: 9W

Dimming Function: Not available

Body:

Product weight: 2X: 3.5kg / 4X: 4.5kg

Overall height (mm): 900

Head Dimensions (mm): 180X237

Possible clamping width (mm): 15～60

AC adapter dimensions (mm): 64x50x27

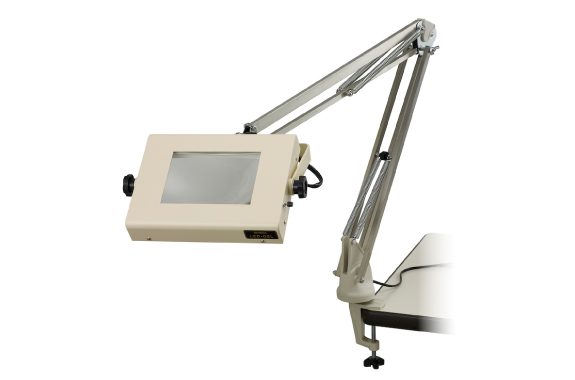

LED-OSL-4 model is an arm-type illumination magnifier that is clamped to a workbench or the like.

power consumption has been reduced by 50% compared to the conventional fluorescent lamp type.

It is the same level of illuminance and diffusion as a fluorescent lamp.

square lens prevents distortion of the outer circumference of the lens that occurs with a round lens, making it possible to work for long periods of time.

ON/OFF switch is located on the head for improved operability.

It is equipped with an AC adaptor for power supply.

 “OSL-PUL (power-up lens)” is available as an option to increase the magnification from 2X to 4X. (Only the product with a 2x lens can be used.
