Otsuka LED-WIDE-3 LED Illuminated mangifire (2x)

Type: Long Bar Type

Lens:

Magnification: 2x

Allowable lens dimension (mm): 200×220

Lens Material: Optical glass

Working distance (mm): 2x/160

Lens Type: Fixed

Multi-coating Setting: Not available

Lighting:

Light source: White LEDs 2 pcs.

Input voltage: 100〜240V: 50/60 Hz: Plug Type A

Power consumption: 9 W

Dimming Function: Not available

Body:

Product weight (Kg): 8.9 Kg

Overall height (mm): 375

Head Dimensions (mm): 314X284x55H

Virtical/Horizontal Bar (diameter/mm): ɸ16/ɸ16

Possible clamping width (mm): 0～70

AC adapter dimensions (mm): 64x50x27

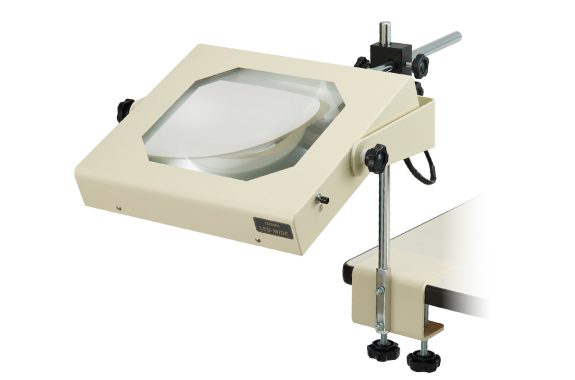

LED-WIDE-3 type is a product that is both flexible and easy to use, and can be fixed to a workbench by a clamp attached to a pillar.

LED-WIDE-3 reduces power consumption by 50% compared to the conventional fluorescent lamp type.

LED version of the light is achieved while maintaining the same level of illumination and diffusion as a fluorescent lamp.

Large-diameter square lens eliminates the distortion of the lens periphery that occurs with round lenses, making it possible to work for long periods of time.

ON/OFF switch is located on the head for improved operability.

long horizontal bar and the pillar are arranged in the X and Y directions, and the long horizontal bar makes it possible to use it like a free arm, although the effect is limited.

AC adapter is used as the power supply.
