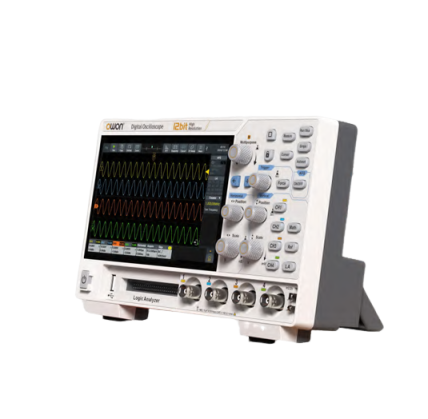

Bandwidth (-3 dB): 125MHz
Channel: 4
Max. sample Rate: 2 GSa/s(single-channel); 1 GSa/s(dual-channel); 500Sa/s(full-channel)
Acquire mode: Sample, Peak, High Res, Average, Segmentation
DC Gain Accuracy: 3% (≤1mV); 2% (≥2 mV)
Waveform Refresh Rate: Max 700,000 wfms/s
Max memory depth: 100M
Vertical Sensitivity Range: 200μV/div - 10 V/div
Vertical resolution: 12 bits
Sampling rate range: 1ns/div - 1000s/div, step by 1-2-5
Relay time accuracy: ±25 ppm(typical)
Input Impedance: 1 MΩ ± 2%, parallel with 20pF ± 5pF
Probe attenuation coefficient: 1μX-1MX, step by 1-2-5, support custom
Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN
Bus Decoding: UART, I2C, SPI, CAN, LIN
Auto measurement: Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(-), Delay(-), Phase(-), Phase(-), FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Waveform Math: +, -, *, /, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter: 6-digit frequency counter；maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter: Support DC, AC+DCrms, ACrms；Resolution: 4 digits (ACV/DCV)
Arb Waveform Generator (optional) Specification:
Max frequency output: 30 MHz (single)
Arbitrary waveform: 28 built-in waveforms
Sample rate: 160 MSa/s
Vertical resolution: 14 bits
Standard waveform: Sine, Square, Ramp, Pulse, Noise
Arbitrary waveform: Exponential Rise/Fall, Sin(x)/x, Step Wave, and others total 28 built-in waveforms
Arbitrary waveform frequency: 1 μHz - 10 MHz
Arbitrary waveform length: 2-18K points
Amplitude: 2mVpp - 10Vpp (high impedance), 1mVpp - 5Vpp (50 Ω)
Modulation: AM, FM, PM, FSK, Sweep and Burst
Logical analyzer (optional) Specification:
Number of channels: 16 input channels (D0-D15) (D0 to D7, D8 to D15)
Threshold Range: ±20.0 V 10 mV step
Minimum voltage swing: 500mVpp
Max. Input dynamic range: ±30V + threshold
Other:
Communication Interface: HDMI, USB device, USB Host, Trig Out (P/F), LAN
Display: 7 inch (1024×600), capacitive multi-touch screen
Power supply interface: Type-C. The external power bank must be 12V/4A output.
Dimension (WxHxD): 260mm x 160mm x 78mm
Weight (package excluded): ≈ 1.5kg
