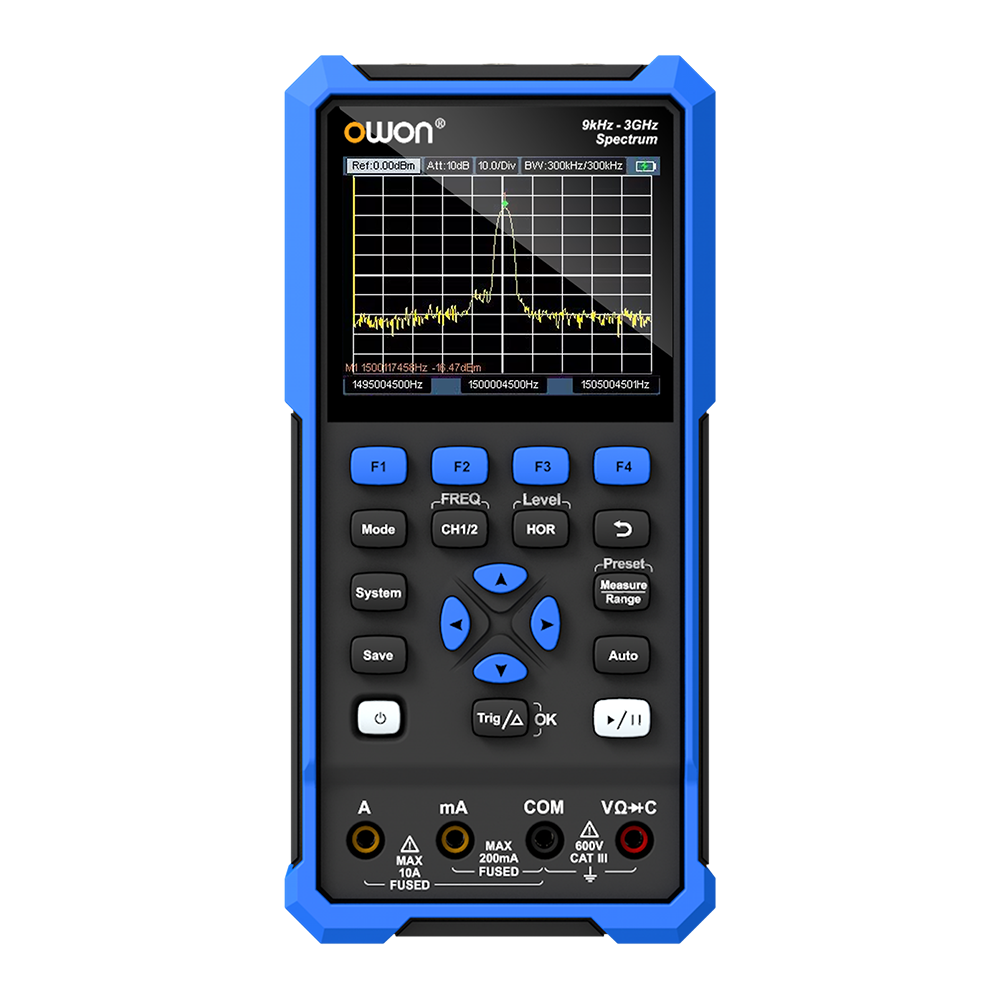

Digital Oscilloscope
Bandwidth: 100MHz
Max Sample Rate: 500MSa/s
Channel: Dual
Acquisition Model: Sample, Peak
Record Length: 8K
Waveform Refresh Rate: 10000wfrms/s
Probe Attenuation: 1X,10X,100X,1000X,10000X
Sampe Rate Range: 5ns/div - 1000s/div, Step by1-2-5
Vertical Resolution: 10mV/div - 10V/div
Trigger Type: Edge
Trigger Model: Auto, Normal, Single
Cursor Measurement: △V, △T
Automatic Measurement: Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width
Spectrum Analyzer
Frequency Range: 9kHz to 3GHz
Frequency Resolution: 100Hz
Frequency sweep range: zero span, 300Hz to the maximum frequency of the instrument
Continuous power: +20 dBm (100mW）
SSB Phase Noise（20℃-30℃，fc=1GHz）: < -60dBc/Hz (type) @10kHz; < -62dBc/Hz (type) @100KHz
Resolution Bandwidth (-3dB): 200 Hz to 850 kHz, steps by 200Hz-1-3-10-30-100-300-600-850KHz
DANL (input attenuation @ 0 dB, RBW = VBW = 100Hz, 20℃ to 30℃, input impedance = 50Ω): <-120dBm (10MHz to 2GHz); <-115dBm (2GHz to 3GHz)
Multimeter
Display: 4 1/2 digits
Input Resistance: 10MΩ
DC Voltage: 20.000mV - 1000.0V
DC Voltage: 20.000mA-10.000A
Resistance: 200.00Ω - 100.00MΩ
Testing Modes: Voltage, Current, Resistance, Capacitance, Diode, Continuity
Diode: 0-2V
AC Voltage: 20.000mV - 750.00V
AC Current: 20.000mA -10.000A
Capacitance: 2.000nF - 2.00mF
Other
Display: 3.5 inch LCD
Interface: USB TYPE-C
Power: Power adapter or Battery
Dimension (W x H x D): 96 × 198 ×38 mm
Device Weight: 0.6 kg
