-Function: Lightning / speed
Area: 50 ... 35000 RPM / FPM
Resolution:
< 1000 PRM: 0.1 RPM
< 9999 RPM: 1 RPM
< 35000 RPM: 10 RPM
Accuracy: ± (0.05% of measured value + 2 Dgt)
-Function: Flash frequency
Area: 0.833 ... 583.3 Hz
Resolution:
< 599.9 RPM: 0.001 Hz
< 5999 RPM: 0.01 Hz
< 35000 RPM: 0.1 Hz
Accuracy:± (0.05% of measured value + 2 Dgt)
-Function: Phase shift
Area: 0 ... 359°
Resolution: 1°
Accuracy: ± (0.1% of measured value + 2 Dgt)
-Function: Ext. Trigger
Area: 0 ... 1200 ms
Resolution:
< 1000 PRM: 0.1 RPM
< 9999 RPM: 1 RPM
< 35000 RPM: 10 RPM
Accuracy: ± (0.1% of measured value + 2 Dgt)
Level ext. trigger: High: 2.5 ... 12V; Low: < 0.8V
Lamp type: Xenon flash
Flash response time: 10 ... 30 μs
Color temperature: 6500K
Flash output: 8 joules
Power supply:
PCE-DSX 20: 230 V AC 50/60 Hz
PCE-DSX 20-US: 110 V AC 50/60 Hz
Current consumption: 240-mA @ 3600 FPM
Operating condition: 0 ... 50°C / 32 ... 122°F, max 80% RH
Dimensions: 230 x 110 x 150 mm / 9 x 4.3 x 5.9 in
Weight: About 1145 g / 2.5 lbs
Delivery Scope:

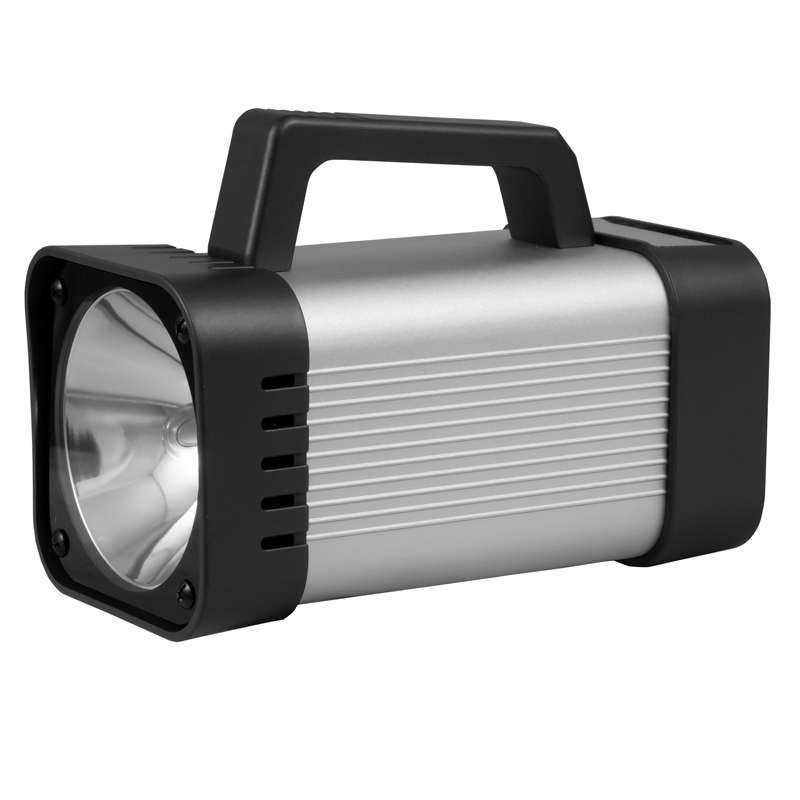

1 x Stroboscope PCE-DSX 20
1 x Plug for trigger input
1 x Power cable
1 x User manual
