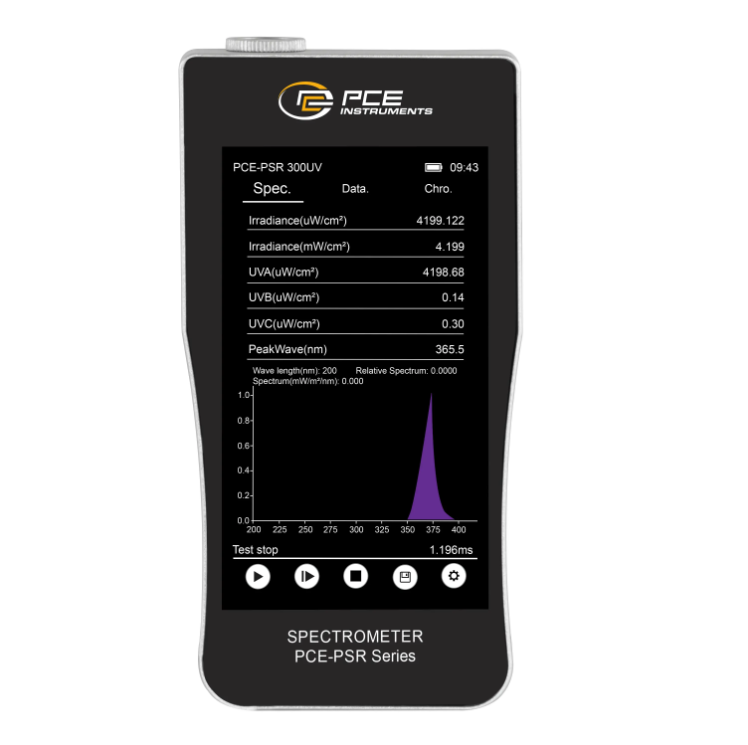

PCE PSR 300UV Spectrometer (0.1~500000 µW/cm²; 0.001 µW/cm²)

Radiation

Measurement range up to: 0.1 ... 500000 µW/cm²

Resolution: 0.001 µW/cm²

Accuracy: 0.01 µW/cm²

General technical data

Display type: LCD touchscreen

Display size: 5 Inch

Display resolution: 480 x 854

Storage medium: Internal memory

Storage capacity: 8 GB

Memory capacity (additional information): approx. 5000 data records

Interface: USB, BLE switch

Operating time: 20 h

Automatic power-off from...to: 2 ... 60 min.

Automatic power-off can be deactivated: Yes

Reproducibility: ±0.5 nm

Colour spaces: CIE1931, CIE1960, CIE1976, SDCM, CRI1, CRI2, TM30 (Distribution of Fidelity), TM30 (Change Distribution), TM30 (Rg/Rf)

Wavelength range: 200 ... 400 Nm

Light parameters: Irradiance (µW/cm²), Irradiance (mW/cm²), UV hazard Ee (µW/cm²), UVA (µW/cm²), UVB (µW/cm²), UVC (µW/cm²), PeakWave (nm), HalfWidth (nm), Darksignal, Peak signal, IntegTime (ms), Transmittance (%)

Menu language: English, Chinese, English (GB)

Protection class (device): IP56

Power supply: 100 ... 240V AC | 50/60 Hz

Connector type: Euro plug

(Rechargeable) battery: 1 x 3.7 V internal , Lithium-ion battery

Capacity: 4000 mAh

Operating conditions: -10 ... 40 °C , 70 % RH

Storage conditions: -20 ... 45 °C , 70 % RH

Dimensions ( L x W x H ): 160 x 82 x 22 mm

Weight: 390 g
