Specification
Measuring Range
Rockwell: 20 ... 70 HRC
Brinell: 90 ... 450 HB
Vickers: 230 ... 940 HV
tensile strength: 370 ... 1740 MPa
Measurement Accuracy
± 1.5% HRC
± 3% HB
± 3% HV
Maximum Materialrauhigkeit
10 N probe: 1.5 Ra
50 N probe: 2.5 Ra
rebound probe: 3,2 Ra
Maximum Curvature Radius of the Surface
UCI probes: 5.0mm / 0.19 in
rebound probe: 10 mm / 0.39 in
Minimum Weight of the Specimen
UCI probes: 0.1 Kg / 0.2 lbs
rebound probe: 5 kg / 11 lbs
Minimum thickness of the test specimen
UCI probes: 1 mm / 0.03 in
rebound probe: 10 mm / 0.3 in
Working Conditions: - 20 ... 40 ° C / -4 ... 104 ° F
Dimensions
Unit: 122 x 65 x 33 mm / 4.8 x 2.5 x 1.2 in
UCI probe: Ø25 x 140 mm / 0.9 x 5.5 in
rebound probe: Ø20 x 150 mm / 0.7 x 5.9 in
Weight
Device: 200g / 7.05 oz
UCI probe: 250 g / 8.8 oz
rebound probe: 100 g / 3.5 oz
Power Supply: 2 x 1.5 V battery
Battery Life: 20 h
Delivery contents

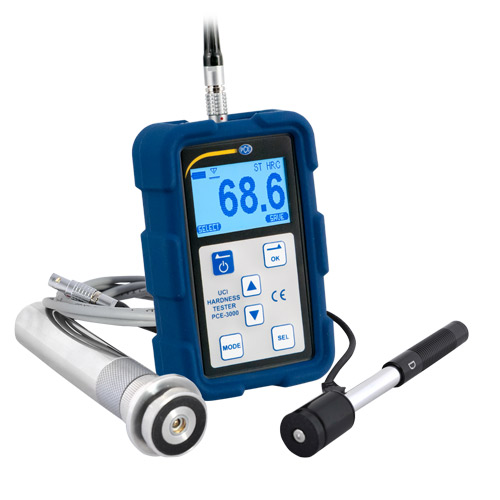

1 x UCI hardness tester PCE-3000
1 x 50 N UCI probe
2 x 1.5 V NiMh battery
1 x Charger
1 x Manual
1 x USB cable
