Specification
Electronic parameters
Outputs:
Analogue: 4 ... 20-mA, 0 ... 20-mA,
0 ... 5V (adjustable), Type-J or K sensors
Temperature sensor head 10 mV / °C or °F alarm
Relay (via software) optional digital outputs USB,
RS-232, RS-485, relay
Inputs:Emissivity, temperature compensation, trigger (by software)
Cable length:1 m / 3.3 ft, other lengths can be ordered separately
Consumption:Max. 100-mA
Power:8 ... 36V DC
General parameters
Ingress protection:IP65 (NEMA-4)
Operating temperature for Sensor head:-20 ... 180°C / -4 ... 356°F
Storage conditions:-40 ... 85°C / -40 ... 185°F
Operating relative humidity:10 ... 95% without condensation
EMI:IEC 801-3, level 3 (maximum cable length of 3m)
Weight
Sensor head:40 g / .09 lb
Electronic component:420 g / < 1 lb
Temperature range:40 ... 600°C / 104 ... 1112°F
Spectral range:8.0 ... 14 µm
Optical resolution: 115:1
Accuracy 2:± 1% or ± 1°C3 / 1.8°F3
Repeatablility:± 0.5% or ± 0.5°C3 / 0.9°F3
Temperature coefficient:± 0.05°C / 0.09°F, °C / °F or ± 0.05% / °C3 °F3
Temperature resolution:0.1°C5 / 1.8°F5
Response time:150 ms (95%)
Emissivity:0.100 - 1.000 adjustable in digital mode, by units of 0.001
Functions:Maximum, minimum Hold and average value
1 90% of energy
2 at an operating temperature of 23°C / 73°F, ± 5°C / 9°F
3 shighest value is considered correct
4 ISO calibration certificate based on the NIST / DKD measurement
5 for a temperature margin of 300K
Delivery contents

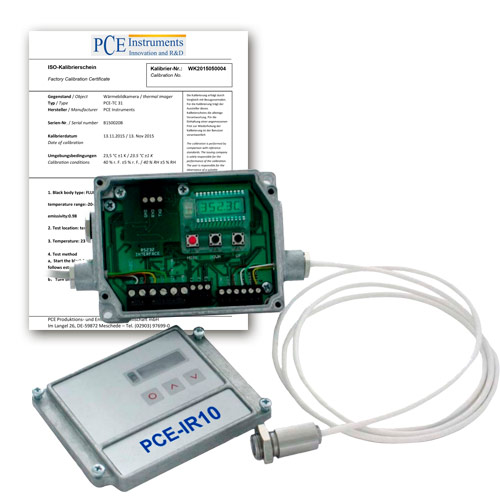

1 x HVAC infrared thermometer PCE-IR 10 with sensor
1 x ISO Calibration Certificate
