Specification
Cable diameter: 6.0 mm / 0.24 in
Cable length: 1 m / 3.28 ft
Depth of field: 1.5 … 10 cm / 0.59 ... 3.94 in
Field of view: 67°
Bending radius:90 mm / 3.54 in
Illumination:6 LEDs (4 front, 2 side), automatic
Boost function:For improved image quality in the dark
Image sensor:CMOS
Picture rate:30 frames per second (fps)
Display: 88.9 mm / 3.5" TFT LCD monitor
Interface:Mini USB 1.1 / AV out
Storage options:Image or video
Storage:8 GB memory card (can be increased to 32 GB)
Compression format:MPEG 4
Picture format:JPEG (640 x 480 pixel resolution)
Video output format:NTSC / PAL
Video format:ASF (320 x 240)
Operation and storage temperature:-10 ... 50°C / 14 ... 122°F
Power supply:Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device:207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case:450 g / 1 lb
Protection type, camera:IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28', ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion).
Delivery contents

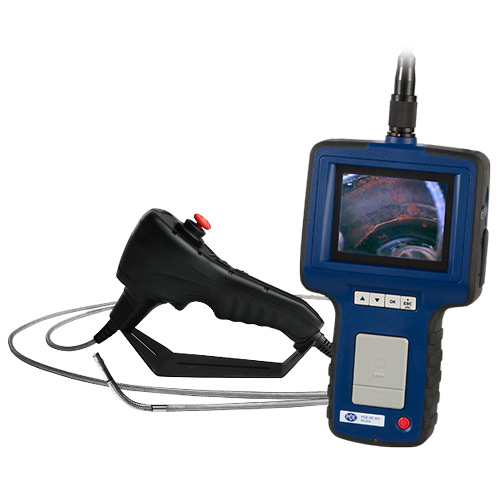

1 x PCE-VE 370HR inspection camera
1 x SD memory card
1 x USB cable
1 x Charger
1 x User manual
1 x Carrying case
