Specification
Measuring ranges
Vibration acceleration:
0.1 m/s² ... 400.0 m/s² (Peak)
0.3 ft/s² ... 1312.3 ft/s² (Peak)
(0 ... 40 g / 0.09 lb force)
Vibration velocity:
0.01 mm/s ... 400.0 mm/s
4.0 x 10-4 in/s ... 15.7 in/s
Vibration amplitude:
0.001 mm ... 4.000 mm (Peak-Peak)
4.0 x 10-5 in ... 0.16 in (Peak-Peak)
Range of Frequencies
Vibration velocity:10 Hz ... 10 kHz
Vibration acceleration:10 Hz ... 10 kHz
Vibration amplitude:10 Hz ... 10 kHz
Resolution:0.25 Hz
Accuracy:±5 %
Batteries:AA 1.5 V
Surrounding temperature:0 ... +50° C / 32° F ... 122° F
< 95 % rel. error
Dimensions:
130 mm x 70 mm x 30 mm
5.1 in x 2.8 in x 1.2 in
Weight:0.3 kg / 0.67 lbs
Delivery contents

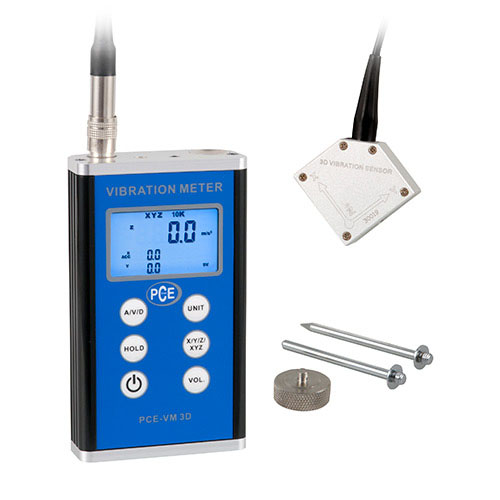

1 x PCE-VM 3D Vibration Analyzer
1 x magnetic sensor
1 x external sensor with 1.5 m cable
2 x measuring tips
1 x instruction manual
1 x hard case
