Specifications

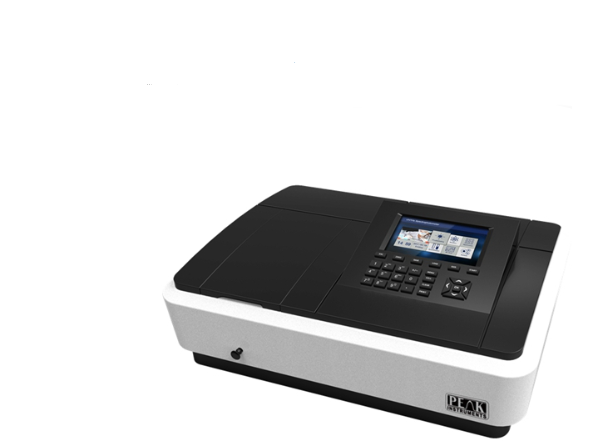

Model: C-7100
Display: 7 inch LCD screen
Keyboard Control: Silicone Button
Optical System: - Single Beam
- Holographic grating, 1200 lines/mm
Spectral Bandwidth: 2nm
Wavelength Range: 190 - 1100nm
Wavelength Accuracy: ±0.3nm
Wavelength Repeatability: ≤0.2nm
Photometric Accuracy: 0.2%T(0-100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Repeatability: ≤0.15%T(0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Stray Light: ≤0.03%T@220nm,360nm
Stability: ±0.002A/h@500nm
Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
Baseline Flatness: ±0.002A(200-1000nm)
Noise: 0.0003A@500nm
Working Mode: T,A,C,E
Wavelength Setting: Automatic
Scanning Speed: High, Medium and Low
Detector: Solid Silicon Photodiode
Light Source: Tungsten Halogen/Deuterium Lamp
Data Output: RS232, USB(A), USB(B)
Processor: Cortex_M3, 120Mhz
Power Requirements: AC 110-220V 50-60Hz
Shipping Dimensions & Weight: 770*630*340mm, 27kg
