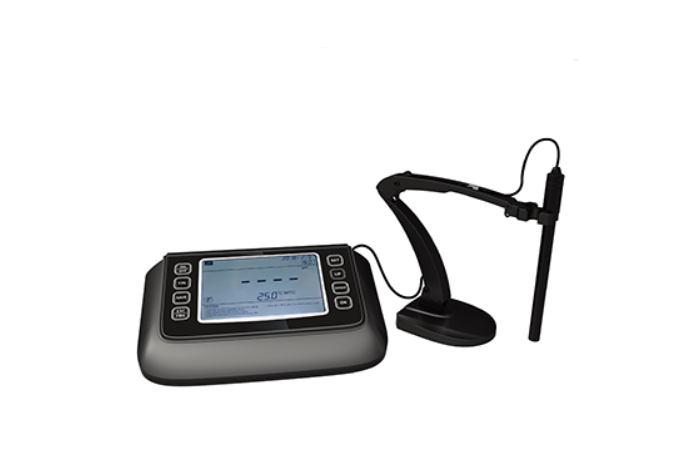

Peak Instruments S-612 Dissolved Oxygen Meter (0,00 ~ 20 mg/L (ppm))

Specifications

Display: 6.5 inch LCD screen

Parameters: Concentration, saturation, temperature

DO range: 0.00 ~ 20 mg/L (ppm)

DO Resolution: 0.01/0.1

DO Accuracy: ±0.3%

DO Saturation: 0.0~200%

Saturation Resolution: 0.1%

Saturation Accuracy: ±2.0%FS

Temperature Measuring Range: (0-100)℃

Temperature Resolution: 0.1℃

Temperature Accuracy: ±0.1℃

Temperature Compensation: (0-100)℃

Salinity Compensation: (0.0~50.0) g/L

Pressure Compensation: (80~105) kPa (automatic)

Pressure Resolution: 1

Pressure Accuracy: ±2%

Stability: (±0.07mg/L)/1h

Response Time: ≤30s (25℃, 90% response)

Data Storage: 500 sets, external USB storage

Communication Interfaces: USB, Bluetooth

Working Conditions: Temperature: 5-40°, Humidity: 5-85%

Power: 12V1A (with standard AC adapter)

Dimensions &Weight: 240x170x70mm/600g

Standard Configuration

1. S-612 DO meter: 1 unit

2. Composite DO electrode: 1 pc

3. Rotary electrode holder: 1 pc

4. 12V power adapter: 1 pc

5. Membrane cap: 3 pcs

6. DO electrolyte (30ml in powder): 1 bottle

7. USB with operation manual: 1 copy
