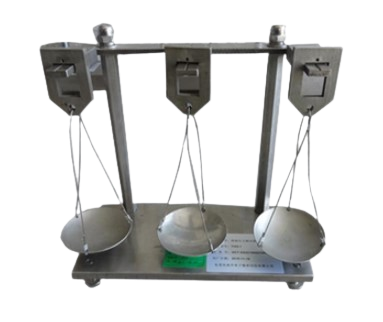

PEGO PG-IDD Indentation Device (0.7 ± 0.01mm, 30mm ± 0.1mm)

Test station: 3

Blade thickness: 0.7±0.01mm

Blade width: 30mm±0.1mm

Load

1g*3, 2g*3, 5g*3, 10g*3, 20g*3, 50g*3, 100g*3, 200g*3, 500g*3, 1000g*3

Made of stainless steel

Application: ≥0.4mm and ≤55mm insulation sheath

Supporting mandrel: Flat plate, 900 V slot plate, 1200 V slot plate

Weight tray: Diameter φ100mm

Material of device: SUS304

Dimension: 400mm*220mm*330mm

Weight: Approximate 20kg

The indentation device is designed according to IEC60811-508:2012 figure 1. The device is consisted by blade, supporting mandrel and loads. It is applied to test the indentation produced by the insulation sheath of the plug or cable under high temperature and pressure.   The device should work with oven.
