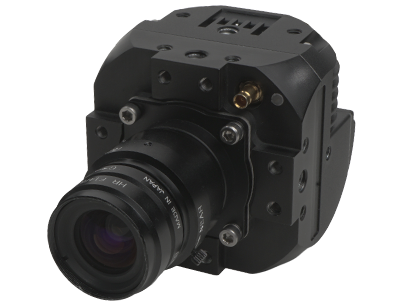

PHANTOM C540J High-speed camera (2560 × 1680)

IMAGE & SENSITIVITY

Sensor Type: Proprietary BSI CDS CMOS designed by Forza Silicon, Global Shutter

Maximum Resolution: 2560 × 1680;

CAR Increments: 1920 × 24

Pixel Size: 5 µm

Sensor Size (Diagonal): 15.3 mm (1");

Bit Depth: 12-bit

EMVA 1288 Measurements (at 533 nm)

Quantum Efficiency (QExFF): 60.7 mono / 62.6 color;

Max. SNR (dB): 37.8;

Absolute Sensitivity Threshold (e-): 4.89 mono / 4.75 color;

Saturation Capacity (e-): 6058 mono / 6015 color;

Temporal Dark Noise (e-): 4.33;

Dynamic Range (dB): 61.87;

MEMORY & STORAGE

RAM Buffer: 14 GB;

Capture Duration: 1.9 seconds at max resolution and max frame rate

Multi-Cine: Up to 63 Partitions

Non-Volatile Media: 256 GB internal SD flash memory

Media Transfer Rates: 60 MB/s from RAM to internal SD flash

FRAME RATES & EXPOSURE

Top FPS at Max Resolution: 1140;

Maximum FPS: 50,820;

Minimum FPS: 100

Frame Timer Clock: 68 MHz

Minimum Exposure: 3 µs

PIV Features: N/A

Exposure Features: Auto Exposure

MECHANICAL

Housing Variants: N/A

Size: 6.2 × 6.2 × 6.35 cm;

Weight: 0.6 lb (0.27 kg)

JB3 Junction Box Size: 6.8 × 3.2 in (17.2 × 8.2 cm)

JB3 Junction Box Weight: 1.6 lbs (0.7 kg)

Lens Mounts: C-mount

Mounting Points: 1/4×20 and M4 mounting points on all sides

Internal Shutter: N/A

Cooling: Active cooling
