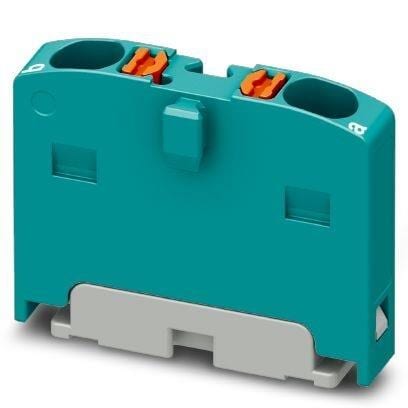

PHOENIX CONTACT 1082538 Distribution Block Distribution block Basic terminal block nom. voltage: 450 V nominal current: 17.5 A connection method: Push-in connection number of connections: 2 cross section: 0.14 mm - 2.5 mm AWG: 26 - 14 width: 4.2 mm height: 17.7 mm color: turquoise

Color: Blue (Turquoise)

Width: 4.2 mm

Height: 17.7 mm

Length: 21.6 mm

Current Rating: 17.5 A

Mounting Style: DIN Rail

Voltage Rating: 450 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 26 AWG

Housing Material: Polyamide (PA)

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
