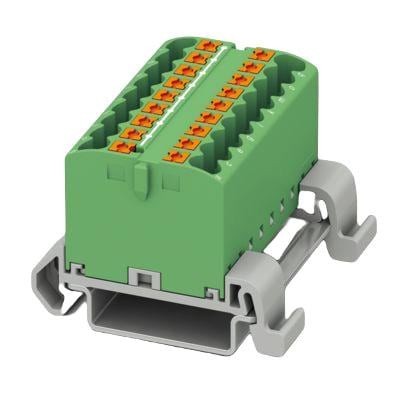

Color: Green
Width: 46.9 mm
Height: 28.7 mm
Length: 45.7 mm
Unit Weight: 36.360 g
Current Rating: 24 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Number of Rows: 2 Row
Voltage Rating: 500 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 12 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 18 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
