- Function and Applications:

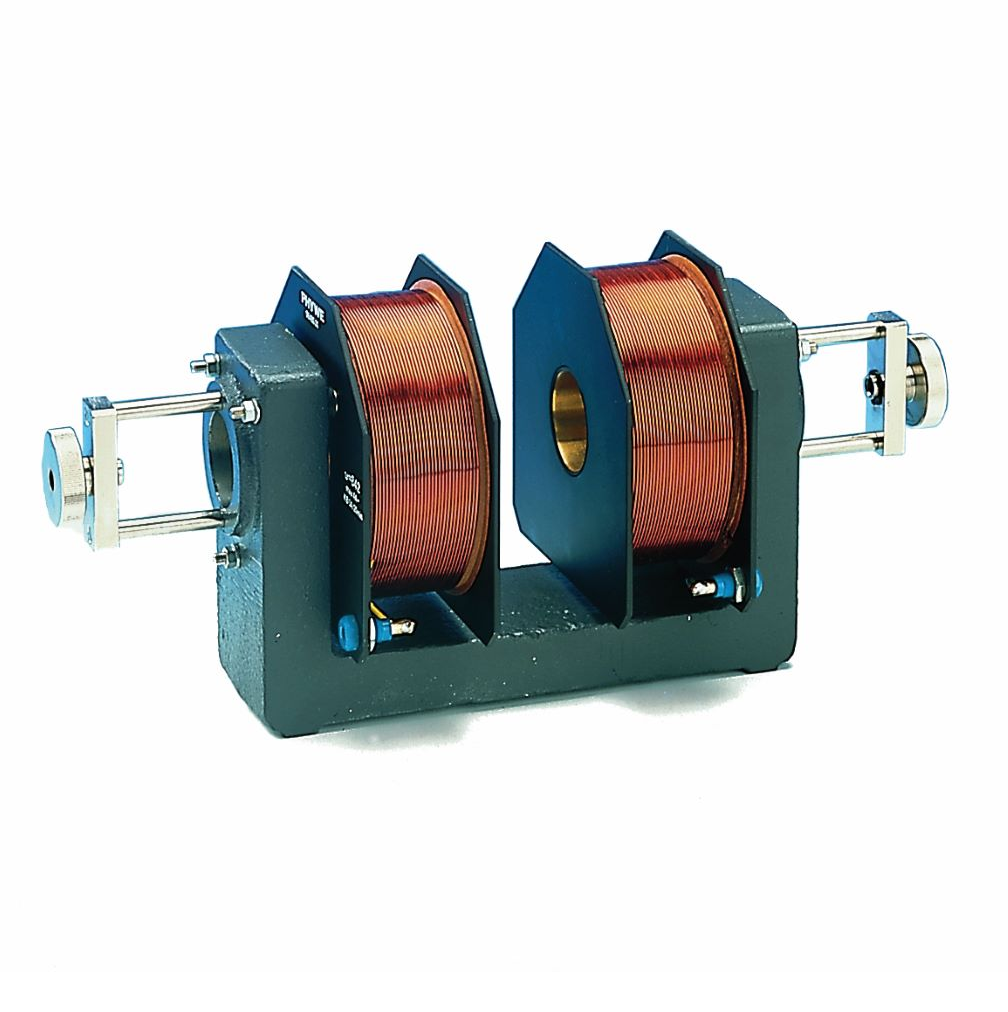

Electromagnet w/o pole shoes for generation of strong magnetic fields together with differently shaped pole pieces.
- Equipment and technical data:
U-shaped iron core with coils for parallel and series use.
Clamping device with threaded drive for sensitive air gap adjustment with pole piece 06480.02
Turns per coil: 842
Admissible permanent current: 4 A
Max. current: 5 A (short term)
Resistance per coil: 2.66 Ohm
Flux density (for l=5A) with 2 pole pieces 06480.02 with 2.5 mm air gap: approx.1.3T
Weight: approx. 17 kg
Dimensions: 350 x 140 x 180 mm
