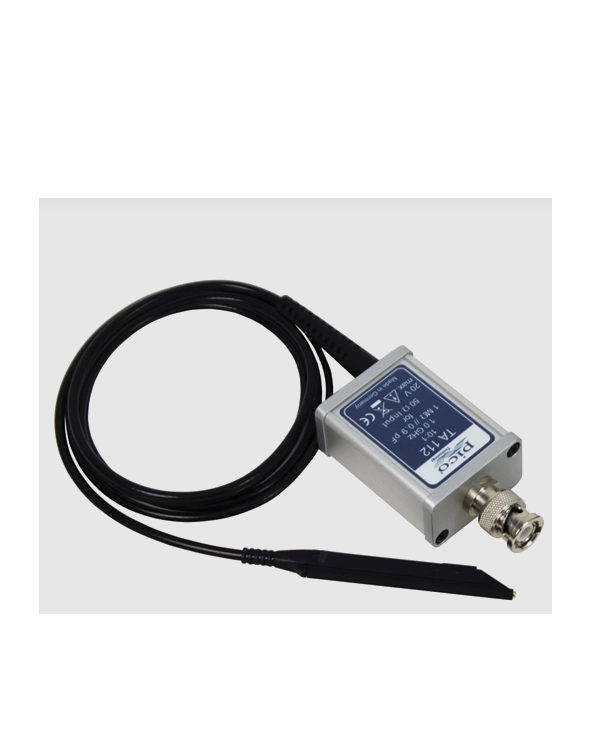

PICO TA112 High-Impedance Active Oscilloscope Probe (1 GHz, 10:1)

Attenuation: 10:1

Input impedance: 1 MΩ || 0.9 pF

Input coupling of the measuring instrument: 50 Ω

Probe bandwidth (–3 dB): 1 GHz

System bandwidth (–3 dB): 600 MHz (*)

Input dynamic range: ±8 V

Max. input voltage: 20 V

Cable length: 1.3 m

Supply voltage: Power supply included (UK/EU/US)

Environmental

Altitude: Operating: up to 2000 m

Storage: up to 15 000 m

Temperature range Operating: 0° C to +45° C

Storage: –40° C to +71° C

Maximum relative humidity (operating): 80 % relative humidity for temperatures up to +31 °C, decreasing linearly to 40 % at +50 ° C

(*) with >500 MHz oscilloscope
