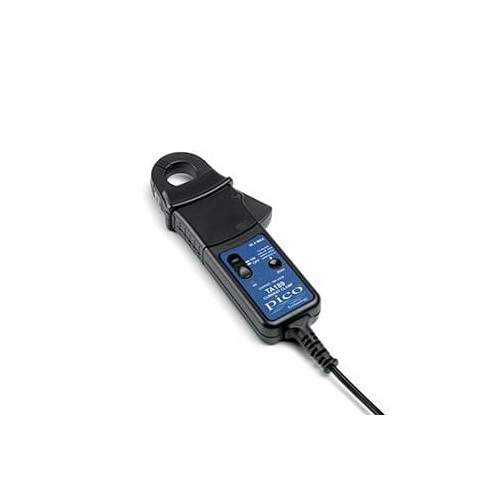

PICO TA189 AC/DC Current Probe (2mA-30A; BNC)

Nominal current: 30 A AC peak or DC

Measuring range: 30 A

Overload capacity: 500 A (60 s)

Output sensitivity: 100 mV/A

Accuracy: ±1% of reading ± 2 mA

Resolution: ±1 mA

Frequency range: DC to 100 kHz (0.5 dB)

Power supply: 9 V alkaline battery PP3, MN1604 or IEC 6LR61

Load impedance (minimum): > 100 kΩ and ≤ 100 pF

GENERAL DATA

Conductor size: 25 mm diameter

Output cable and connectors: 2m long coax cable with safety BNC connector

Operating temperature: 0°C to +50°C

Storage temperature with battery removed: –20°C to +85°C
