Direct access to our certified experts

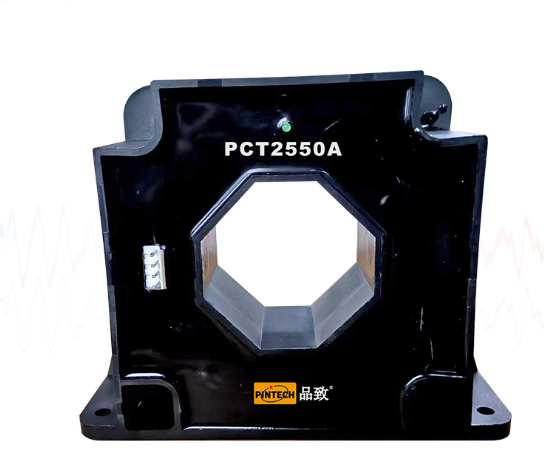

Maximum measurement of continuous DC current IPN DC: ±2500A
Maximum measurement of continuous RMS current IPN: 1750A
Measure the current range IPM(DC): ±3000A
Current transfer ratio KN: 5000:1
Output current IS: ±500mA
Precision (DC): ±0.01%
Bandwidth BW(±3dB): 50kHz
Maximum overload capacity @ single pulse 100ms: ±3000A
Power supply voltage: ±24V
Power consumption (IPwr): ±510mA
Maximum measuring aperture: 60mm
Secondary interface: VH3.96-4P
