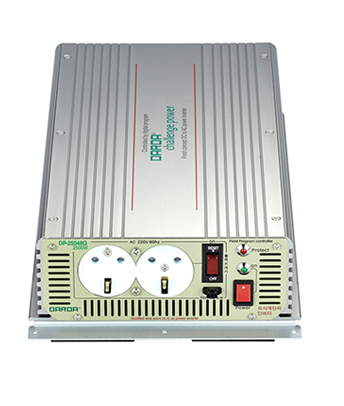

PNKHITECH DP-25048Q Inverter (48VDC / AC228V, 2500W, Modified sine wave)

SPECIFICATIONS
DC input voltage : 48V
DC voltage standard : 53V
AC voltage standard : AC228V
Max output power time 15~16min : 2500W
Output power continuous : 1800W
Surge rating : 5000W
Effciency et rated power : 91%
Effciency et max power : 87%
THD [max] : 25%
No load current : no fan : 0.17A
on fan : 0.34A
Low battery shut down : 40.2V
Low battery return on power : 44V
High battery shut down : 60.8V
High battery return on power : 56.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 202×71×385
Weight : 3.3kg
