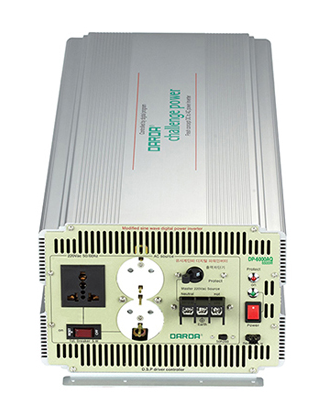

PNKHITECH DP-6000AQ Inverter (12VDC / AC228V, 6500W, Modified sine wave)

SPECIFICATIONS
DC input voltage : 12V
DC voltage standard : 13.4V
AC voltage standard : AC228V
Max output power time 15~16min : 6500W
Output power continuous : 4900W
Surge rating : 13kW
Effciency et rated power : 89%
Effciency et max power : 83%
THD [max] : 25%
No load current : no fan : 1.1A
on fan : 1.97A
Low battery shut down : 10.0V
Low battery return on power : 11.2V
High battery shut down : 17.0V
High battery return on power : 15.0V
Over temperature protection : -25 °C ~ +76 °C
Over temperature power on : 58 °C
Output wave form : Fan on temperature 41 °C(±3 °C)
Dimensions [W×H×D(mm)] : 225×154×470
Weight : 8.5kg
