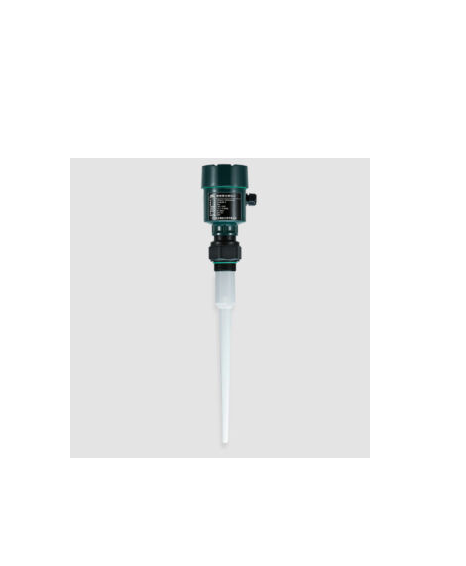

Precision Wave PWRD51 Radar Level Transmitter (6.8GHz; 20m)

Application: it is mainly used for the level measurement of corrosive liquids and slurries with simple process conditions. (Example: sewage storage tanks, acid-base storage tanks, slurry storage tanks).

Maximum range: 20m

Process temperature: (-40~120)℃

Process pressure: (-0.1~0.3) Mpa

Accuracy: ±8mm

Repeatability: ±2mm

Process connection: thread, flange

Operating frequency: 6.8GHz

Signal output: (4~20)mA/HART protocol/ 24V DC two-wire/four-wire;/ (4~20)mA/HART protocol/ 220V AC four-wire system.

Explosion-proof grade: Exia IIC T6 Ga

Protection class: plastic IP66/aluminum IP67
