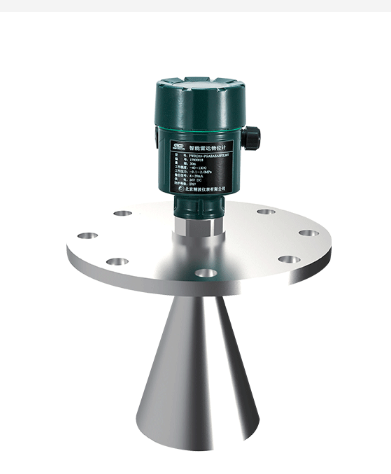

Precision Wave PWRD53 Radar Level Transmitter (6.8GHz; 30m)

Application: mainly used in various storage containers, liquid level measurement of liquid and slurry. (For example: crude oil, light oil storage tanks, volatile liquid storage tanks, slurry storage tanks).

Maximum range: 30m

Process temperature: -40~250℃

Process pressure: -0.1~2.0 Mpa

Accuracy: ±8mm

Repeatability: ±2mm

Process connection: Thread/flange

Operating frequency: 6.8GHz

Signal output: (4~20)mA/HART protocol/ 24V DC two-wire/four-wire;/ (4~20)mA/HART protocol/ 220V AC four-wire system.

Explosion-proof grade: Exia IIC T6 Ga

Protection class: IP68
