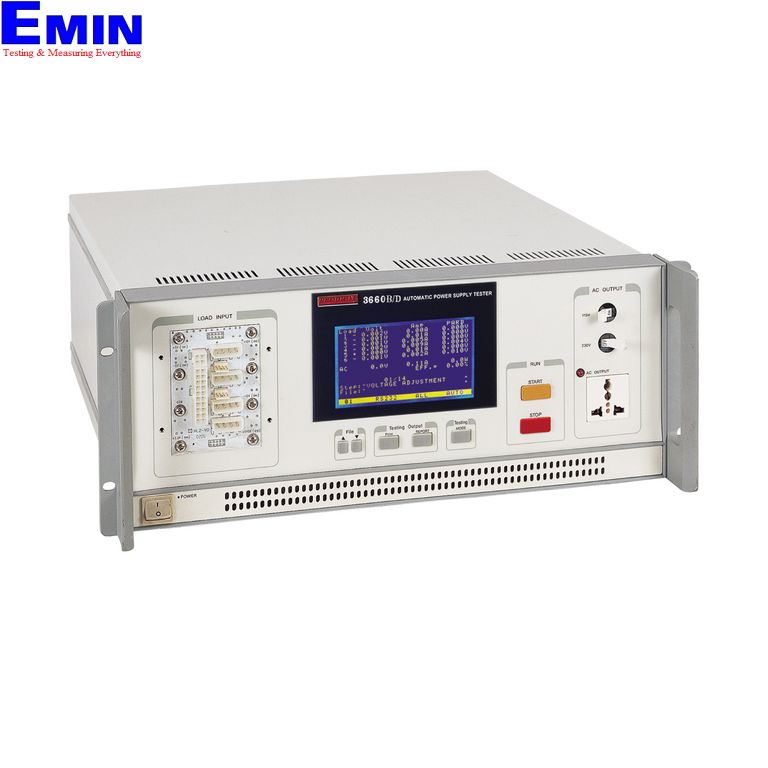

Prodigit 3660B Stand-Alone Automatic Multiple Output Power Supply Tester

Name: Prodigit 3660B Stand-Alone Automatic Multiple Output Power Supply Tester
Brand: PRODIGIT

ManufacturerPRODIGIT(View more products from this manufacturer)

Model3660B

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: Prodigit
Made in Taiwan
Model: 3660B
Warrantly: 12 months
Electronic Load:
Load: 1/2/3/4/5/6
Input Rating:
Power: 300W/180W/20W/40W/120W/20W
Current: 0~60A/0~30A/0~4A/0~4A/0~40A/0~4A
Voltage: 0~+30V/0~-30V/0~+10V/0~+30V
CC mode: 0~60A/0~30A/0~4A/0~4A/0~40A/0~4A
Accuracy: ±0.5%
CR mode: 0.05~200Ω/0.15~600Ω/0.75~3000Ω/0.075~300Ω/0.75~3000Ω
Accuracy: ±0.8%
DVM: 0~+30V/0~-30V/0~+10V/0~+30V
Accuracy: ±0.05%
DAM: 0.00~60.00A/0.00~30.00A/0.000~4.000A/0.00~40.00A/0.000~4.000A
Accuracy: ±0.5%
PARD@2,20MHz: 0.000~0.500Vp-p Res. 1mV
Accuracy: ±2%
Protection Testing:
OVP Voltage source: 0~30V@3A
Accuracy: ±0.2%
Over Current Test: 80A@1Min/30A@1Min/6A@1Min/80A@1Min/6A@1Min
Max Power@1Min: 420W/252W/31.5W/63W/252W/31.5W
Short Circuit Test: Electronic+relay, 0.055Ω/0Ω, 0.08Ω/0Ω, 0.4Ω/0Ω, 0.02Ω/0Ω, 0.4Ω/0Ω
Isolated AC Source:
Output Voltage: 800VA, 50/60Hz(Isolated)
115V@7Arms: 90, 115, 132V
230V@3.5Arms: 90, 115, 132, 180, 230, 264V
AC Voltage Meter: 0.0~300.0Vrms
Accuracy: ±0.3%
AC Current Meter: 0.00~8.00Arms
Accuracy: ±0.5%
AC Power Meter: 0.00~800.00W
Accuracy: ±0.5%
Timing measurement and control:
Pok, Power good/Fail time: 0~9999mS
Set-up/Hold-up Time: 0~9999mS
Accuracy: ±1ms
Threshold Voltage: Vth/VPGS
Input range: 0~30V/0~5.6V
Setting range: 0~30.00V/0~5.60V
Auto/Step Testing Time
Tmeas.1-Tmeas.32: 500.0ms~20sec
Tdelay.1-Tdelay.32: 0.0ms~20sec
AC power: 115/230 Vac
Weight: 28.5kg
Dimension: 440(W) x 220(H) x 440(D)mm
Accessories: Power cord cable, 9806B/D Application Software, operation manual
Options: 9906B: Integrated Twin Test Fixture, ATX Testing Fixture, Universal Test Fiture, 9932: Remote Interface Key Pad

Datasheet

Feature

3660B/D includes AC Source six polarity can be changed, six OVP, two timing and six PARD measuring that can test Input, Output of Power Supplies, Pok Timing, Noise and Protection.
3660B/D was designed with module. Custom load requirements for loads 2 through 6 can be combined.
3660B/D can store up to 24 Test Programs which is in the 3660B/D built-in EEROM for quick access.
Testing can be done either automatically or in a step by step mode.
Utilizes the latest in Electronic Calibration Technology Version update can be download via RS232.
Power supply (U.U.T) information including part number, test requirements and results is shown on the large LCD display.
Test report can be printed out directly or stored in a PC via RS232 interface. Test data can be transferred to EXCELTM file format for report customization.

Applications

Six output power supplies (e.g. notebook/desktops power supplies,scanners, printers, LCD,and many other electronic
products
AC/DC Power Supply
Production line
Quality Assurance
Incoming Inspection
R&D Prototype assurance
3660D ATE is designed connected with external AC Source, measure Inrush Current and Frequency Adjustable Line Regulation

Test Functions

Hold-On Adjust
Load Regulation
Line Regulation
Combine Regulation
P-P Noise (PARD)
Pok，Power Good/Fail
Set-up/Hold up time
OVP (option)
OCP
Short
Rise Time
Efficiency

Description

3660B/D was design for 6 outputs power supplies (e.g. ATX、PS/2 Power Supply etc...). It is an all-in-one stand-
alone unit with built-in hardware and software for all testing requirements. The 3660B/D provides fast, accurate
testing and a "PASS" / "FAIL " report for the U.U.T.
Prodigit 3660B/D Automatic Power Supply Tester is well suited for electronic component inspection, R & D, and
production testing of power supplies used in notebooks,desktops, scanners, printers, and many other electronic products.
Prodigit application software (9860B/D) WindowsTM and ExcelTM compatible software is stored in FLASH memory and allows editing of test parameters, uploading, downloading, and printing of test data, 3660B/D operation system upgrades and multi password protection.
3660B/D is designed Stand Alone Unit that 25% faster testing (as compared with integrated systems using GPIB)
The 3660B/D has a built-in EEROM to store test programs and a large LCD display to show the PASS/FAIL function of the U.U.T test data can be printed out directly without using a computer or can be downloaded to a PC.
3660B has included AC Source that can test Line Regulation without connecting external AC Source.
3660D ATE is designed connected with external AC Source (AC Source is option), measuring Inrush Current and Frequency Adjustable Line Regulation.
The optional 9906B Integrated Twin Test Fixture (with built-in OVP Source) was designed for high volume production testing. It integrates a dual U.U.T. fixture, START/STOP control key, PASS/TESTlNG/FAIL indicator and FAIL alert with adjustable volume.
