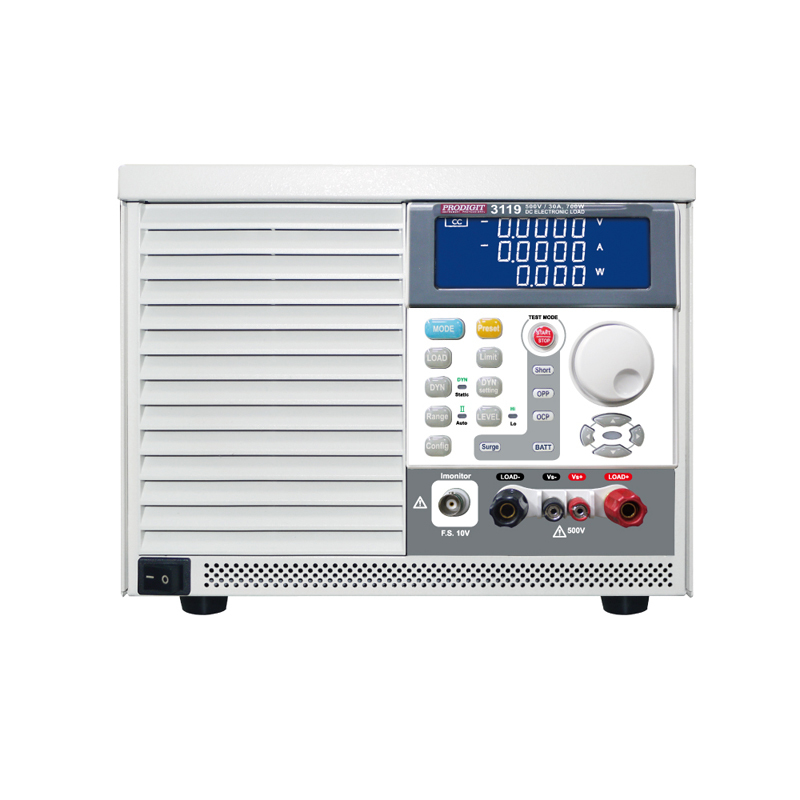

PRODIGIT 3119 DC Electronic Load (500V, 30A, 700W)

Max Power: 700 W

Max Current: 30 A

Operation Voltage: 500 V

Min. Operating Voltage: 3.0V at 30A

Protection: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp. Protection (OTP)

CC MODE Range: 0~3~30 A

CR MODE Range: 0.2~20~1200000Ω

CV MODE Range: 0~60~500 V

CP MODE Range: 0~70.02~700.2 W

Dynamic Operation: 10 μS to 9.999 Sec

Measurement:

- 5 1/2 DVM: 0~60~500 V

- 5 1/2 DAM: 0~3~30 A

Surge Test: 0~30A

Battery Discharge Test: 0~500V

Load ON Voltage: 0.4~100V

Load OFF Voltage: 0~100V

Imonitor (non-Isolated): 3 A/V

Typical Short Resistance: 0.087Ω

Max. short Current: 30A

Power Comsumption: 60VA

Dimension(HxWxD): 205 x 231 x 480mm

Weight: 10.3Kg
