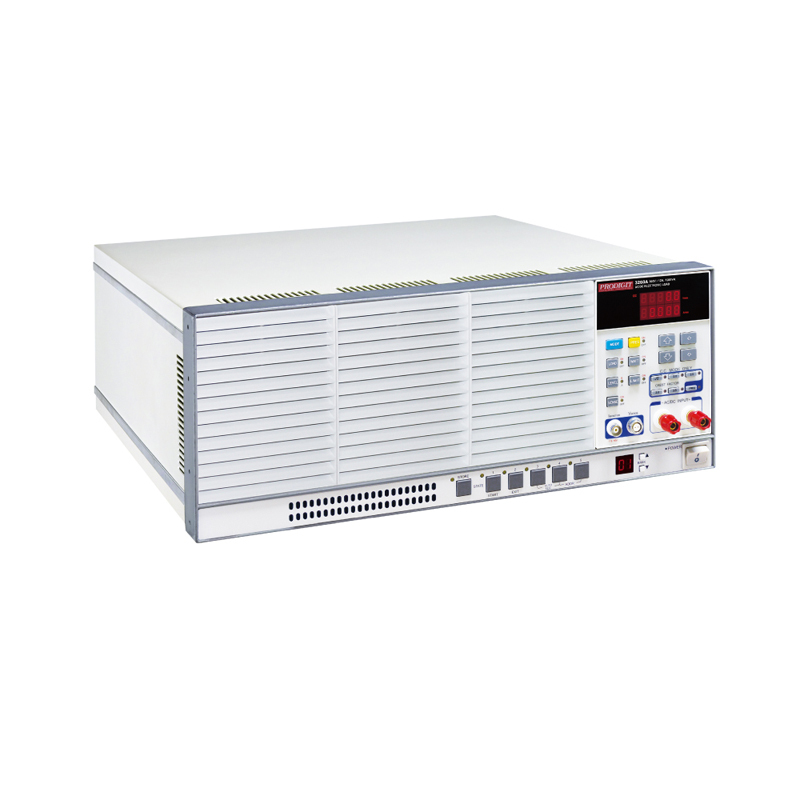

PRODIGIT 3260A AC & DC Electronic Load (300V,12A,1200VA)

Power: 1200VA

Current: 12Arms

Voltage: 50~300Vrms

Protections:

Over Power Protection: 1260 VA

Over Current Protection: 12.6A

Over Voltage Protection: 315V

Over Temp Protection: 85℃

CC mode:

Range: 0~6A/6~12A

Resolution: 1.5mA/3mA

Accuracy: ±0.5%

Low Current Accuracy: 0~0.6A

CR mode:

Range: 0.5~20Ω/20~80KΩ

Resolution: 0.025mS/0.013mS

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 300V, ±0.5%

Current : 12A, ±0.5%

Power : 1200W, ±0.5%

Dimension (HxWxD): 483x177x445mm

Weight: 18.5 kg

Input: 115/230Vac, 50/60Hz
