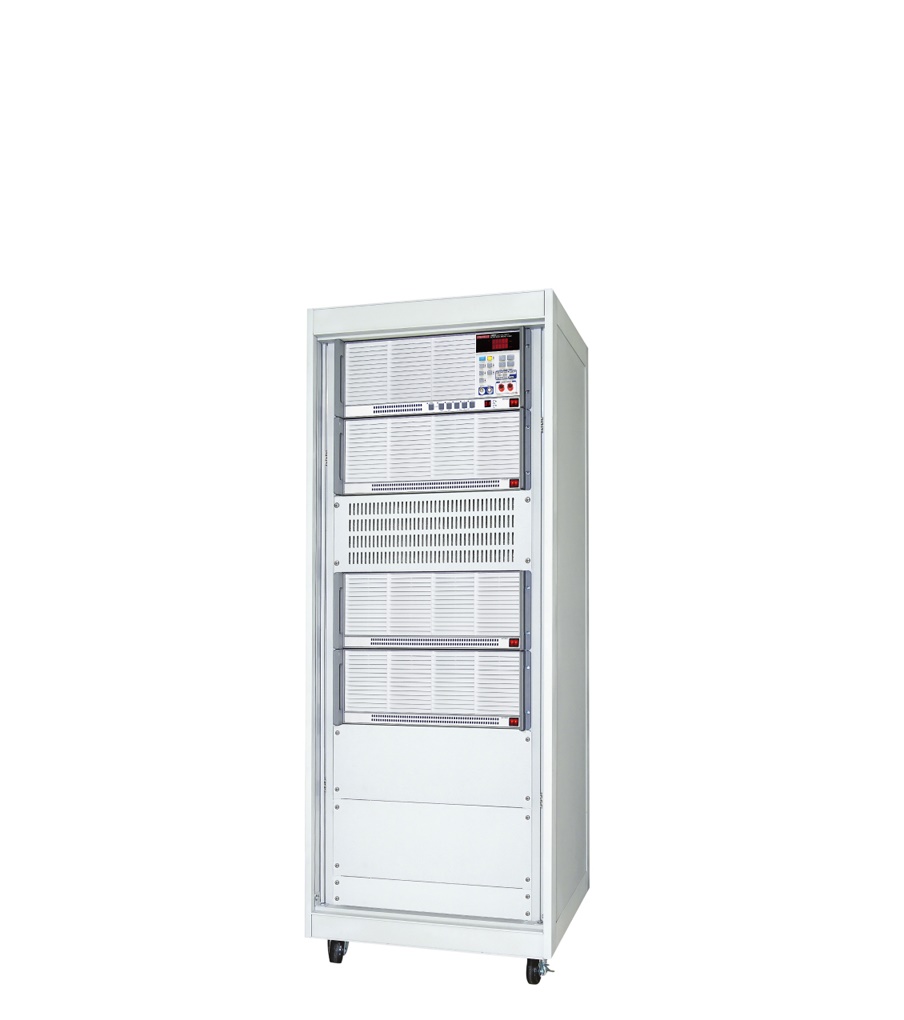

PRODIGIT 32613A AC & DC Electronic Load (300V,72A,7200VA)

Power: 7200VA

Current: 72Arms

Voltage: 50~300Vrms

Protections:

Over Power Protection: 7560 VA

Over Current Protection: 75.6A

Over Voltage Protection: 315V

Over Temp Protection: 85℃

CC mode:

Range: 0~36A/36~72A

Resolution: 9mA/18mA

Accuracy: ±0.5%

Low Current Accuracy: 0~3.6A

CR mode:

Range: 0.833~3.333Ω/3.333~13.33KΩ

Resolution: 0.300mS/0.075mS

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 300V, ±0.5%

Current : 72A, ±0.5%

Power : 7200W, ±0.5%

Dimension (HxWxD): 600 x1283 x600 mm

Weight: 153 kg

Input: 115/230Vac, 50/60Hz
