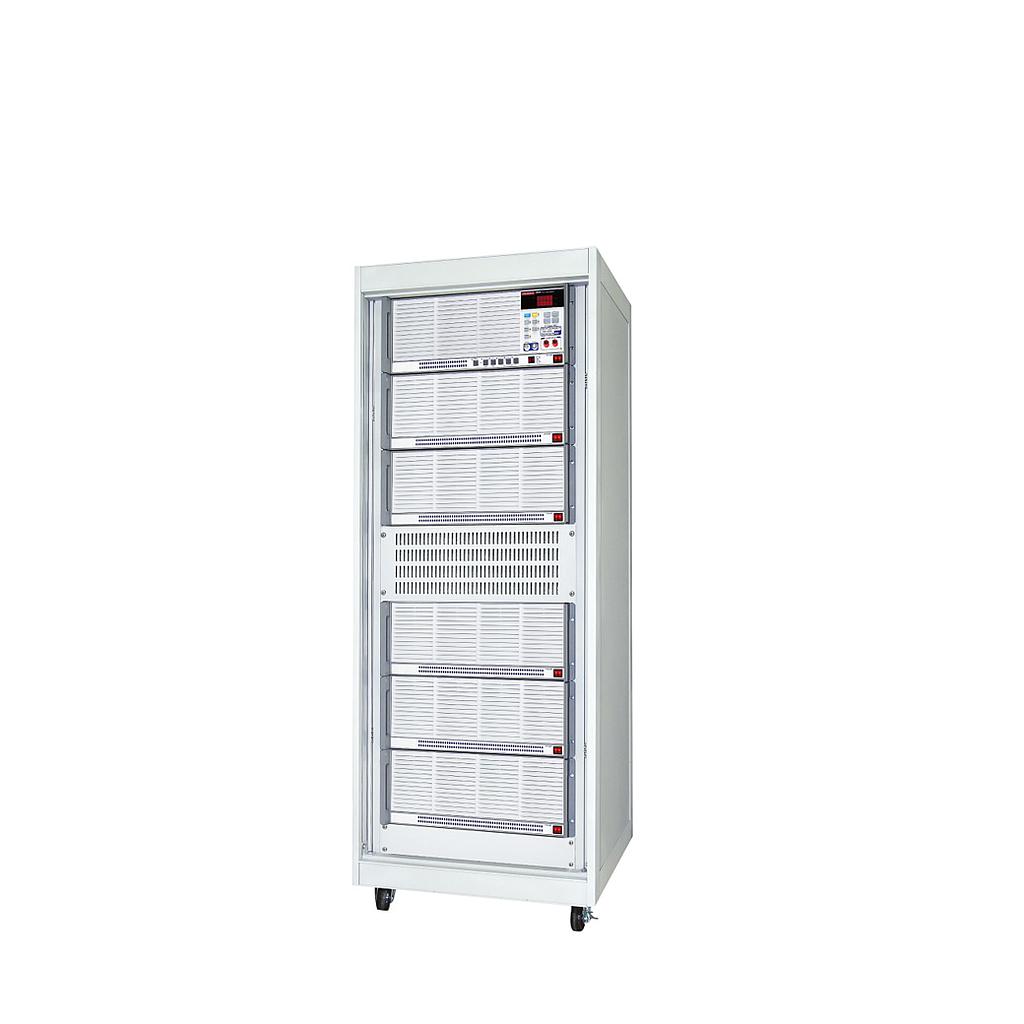

PRODIGIT 32615A AC & DC Electronic Load (300V,108A,10800VA)

Power: 10800VA

Current: 108Arms

Voltage: 50~300Vrms

Protections:

Over Power Protection: 11340 VA

Over Current Protection: 113.4 A

Over Voltage Protection: 315V

Over Temp Protection: 85℃

CC mode:

Range: 0~54A/54~108A

Resolution: 13.5mA/ 27mA

Accuracy: ±0.5%

Low Current Accuracy: 0~3.6A

CR mode:

Range: 0.556~2.224Ω/2.224~8.888KΩ

Resolution: 0. 452mS/0. 113mS

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 300V, ±0.5%

Current : 108A, ±0.5%

Power : 10800W, ±0.5%

Dimension (HxWxD): 600 x1506 x600 mm

Weight: 196 kg

Input: 115/230Vac, 50/60Hz

Datasheet
