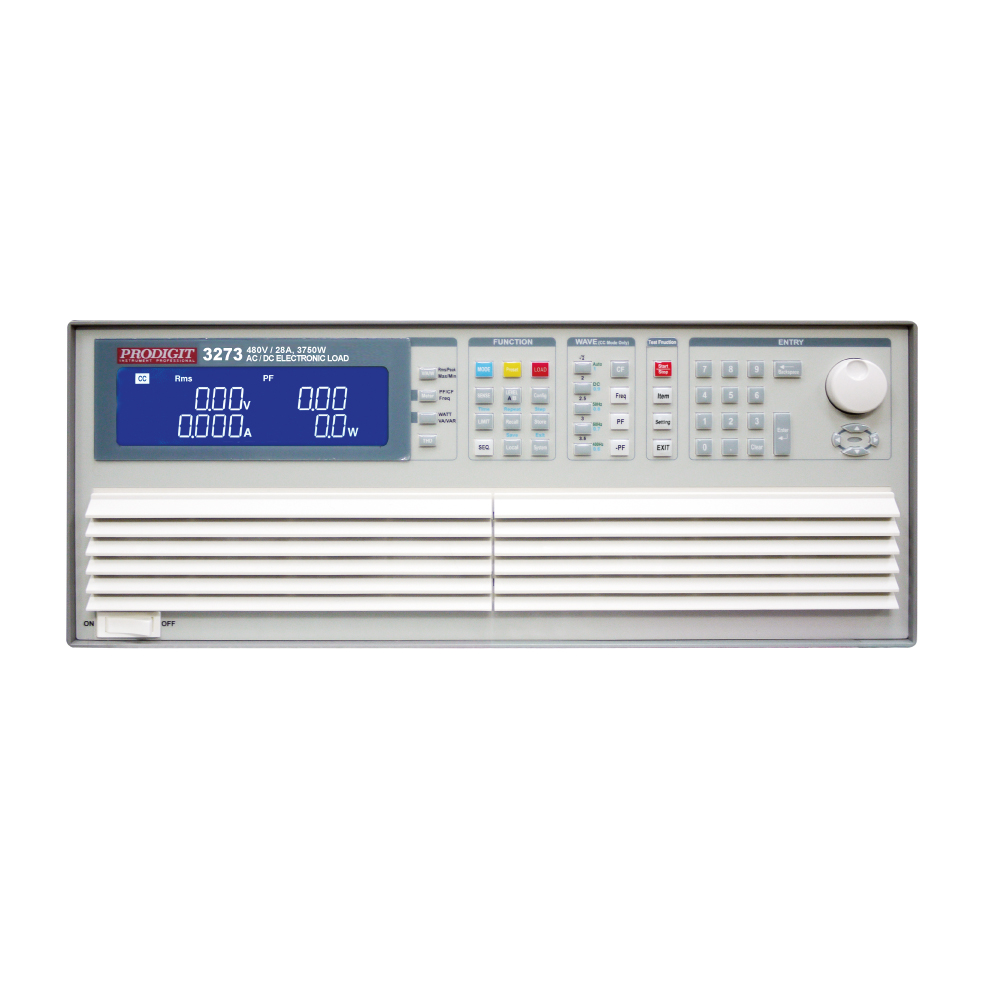

PRODIGIT 3273 AC & DC Electronic Load (28A, 350V, 3750W)

Power 3750W

Current 28 Arms / 84Apeak

Voltage 50~350Vrms / 500Vdc

Over Power Protection(OPP) ≒ 3937.5 Wrms or Programmable

Over Current Protection(OCP) ≒ 29.4 Arms or Programmab

Over Voltage Protection(OVP) ≒ 367.5 Vrms / 525Vdc

Over Temp Protection(OTP) YES

Constant Current Mode

Range 0 ~ 28A

Resolution 0.5mA / 16bits

Accuracy ±（0.1% of setting ＋ 0.2% of range ） @ 50/60Hz

Constant Resistance Mode

Range 2.0 ohm ~ 40K ohm

Resolution 0.0083333mS / 16bits

Accuracy ±0.2% of （setting ＋ range） @ 50/60Hz

Constant Voltage Mode

Range 50 ~ 350Vrms / 500Vdc

Resolution 0.1V

Accuracy ±(0.1% of setting ＋ 0.1% of range) @ 50/60Hz

Constant Power Mode

Range 3750W

Resolution 0.1W

Accuracy ±(0.1% of setting ＋ 0.1% of range) @ 50/60Hz

Interface: GPIB； RS-232； LAN； USB

Dimension ( H x W x D ) 177 x 440 x 558 mm

Weight: 33.5Kg
