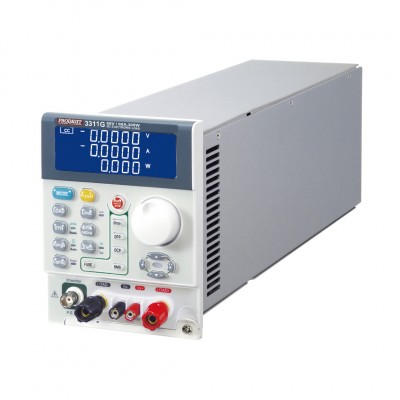

PRODIGIT 3311G Prodigit 3311G DC Electronic Load (180A, 60V, 900W)

Power 300W, 900W max.

Current 60A, 180A max.

Voltage 60V

PROTECTIONS

Over Power Protection(OPP) 105%

Over Current Protection(OCP) 105%

Over Voltage Protection(OVP) 105%

Over Temp Protection(OTP) yes

Constant Current Mode

Range: 0 ~ 6A, 0 ~ 60A

Resolution 0.1mA, 1mA

Accuracy 0.1%

Constant Resistance Mode

Range 1-60KΩ/0.0166mS

Resolution: 0.083Ω~1Ω/0.0166mΩ

Accuracy ± 0.2%

Constant Voltage Mode

Range 0 ~ 6V , 0 ~ 60V

Resolution 0.0001V, 0.001V

Accuracy ± 0.05%

Constant Power Mode

Range 0 ~ 30W/0-300W

Resolution 0.0005W , 0.005W

Accuracy ± 0.5%

Constant Current + Constant Voltage Mode

Range 60V, 60A

Resolution 0.001V, 1mA

Accuracy 1%

Constant Power + Constant VoltageMode

Range 60V, 300W

Resolution 0.001V, 0.005W

Accuracy 1%

Dimension(HxWxD): 143 x 108 x 412 mm
