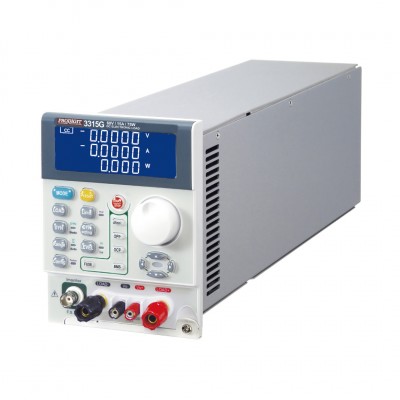

PRODIGIT 3315G DC Electronic Load (60A, 60V, 300W)

Power 75W, 300W max

Current 15A / 60A max

Voltage 60V

PROTECTIONS

Over Power Protection(OPP) 105%

Over Current Protection(OCP) 105%

Over Voltage Protection(OVP) 105%

Over Temp Protection(OTP) yes

Constant Current Mode

Range: 0 ~ 1.5A/0~15A

Resolution 0.0254mA/0.25mAA

Accuracy 0.1%

Constant Resistance Mode

Range 4Ω-240KΩ/0.02Ω~4Ω

Resolution: 0.04166mS/0.0666mΩ

Accuracy ± 0.2%

Constant Voltage Mode

Range 0 ~ 6V/0~60V

Resolution 0.0001V/0.001V

Accuracy ± 0.05%

Constant Power Mode

Range 0 ~ 7.5W/0-75W

Resolution 0.000125W/0.00125W

Accuracy ± 0.5%

Constant Current + Constant Voltage Mode

Range 60V/15A

Resolution 0.001V/0.25mA

Accuracy 1%

Constant Power + Constant VoltageMode

Range 60V/75W

Resolution 0.001V/0.00125W

Accuracy 1%

Dimension(HxWxD): 143 x 108 x 412 mm
