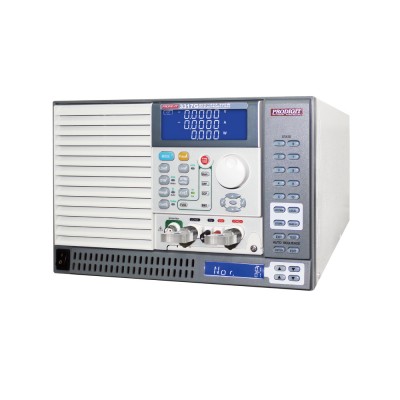

PRODIGIT 3317G DC Electronic Load (160A, 80V, 800W)

Power 800W

Current 160A

Voltage 80V

Over Power Protection(OPP) 105%

Over Current Protection(OCP) 105%

Over Voltage Protection(OVP) 105%

Over Temp Protection(OTP) YES

Constant Current Mode

Range 0 ~ 16.02A/ 0 ~ 160.2A

Resolution 0.267mA/26.7mA

Accuracy ± 0.1% of ( setting + Range)

Constant Resistance Mode

Range 0.5Ω~ 30KΩ/ 0.00416Ω ~ 0.5Ω

Resolution 0.0166mS/0.0083mΩ

Accuracy ± 0.2% of (Setting + Range)

Constant Voltage Mode

Range 0 ~ 8.04V/ 0 ~ 80.4V

Resolution 0.000134V/0.00134V

Accuracy ± 0.05% of (Setting + Range)

Constant Power Mode

Range 0 ~ 80.04W / 0 ~ 800.4W

Resolution 1.334mW/ 13.34mW

Accuracy ± 0.5% of (Setting + Range)

Constant Current + Constant Voltage Mode

Range 80V/ 160A

Resolution 0.001V/0.34mA

Accuracy ± 1.0% of (Setting + Range)
