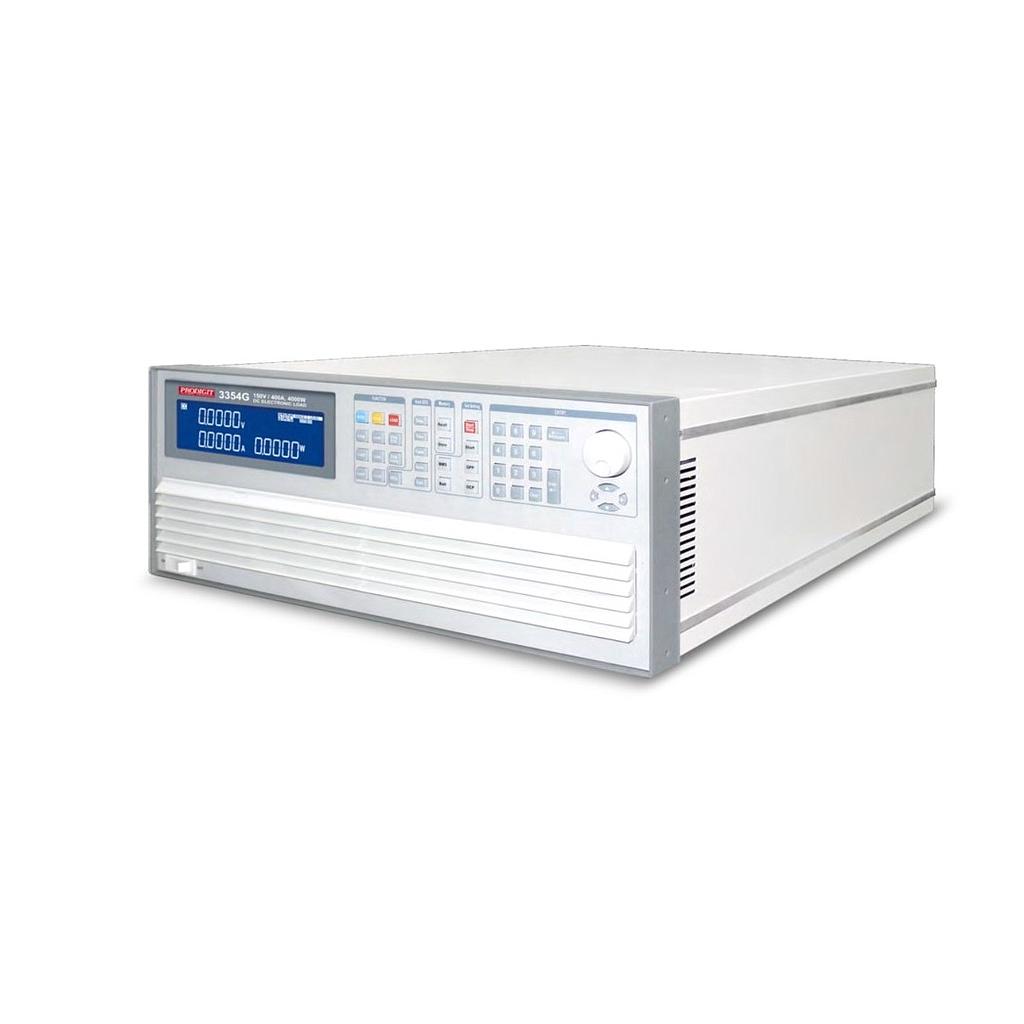

PRODIGIT 3354G Compact High Power DC Electronic Load (4000W, 400A/150V)

Power: 0~4000W / 0~6000W max

Current: 0~400A / 0~600A max

Voltage: 0~150V

Min.Operatting Voltage: 0.7V @ 400A

Protections

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): 90℃ ± 5℃

Constant Current Mode

Range: 0~40A / 0~400A

Resolution: 0.00064A / 0.0064A

Accuracy: ± 0.05% of (Setting + Range)

Constant Resistance Mode

Range: 0.375~22500Ω / 0.0018~0.375Ω

Resolution: 0.000044S / 0.00000625Ω

Accuracy: ± 0.2% of (Setting + Range)

Constant Voltage Mode

Range: 0~15V / 0~150V

Resolution: 0.0025V / 0.025V

Accuracy: ± 0.05% of (Setting + Range)

Constant Power Mode

Range: 0~400W / 0~4000W

Resolution: 0.0064W / 0.064W

Accuracy: ± 0.1% of (Setting + Range)

Constant Voltage Mode + Constant Current Mode

Range: 150V / 400A

Resolution: 0.0025V / 0.0064A

Accuracy: ± 1.0% of (Setting + Range)

Constant Voltage Mode + Constant Power Mode

Range: 150V / 4000W

Resolution: 0.0025V / 0.064W

Accuracy: ± 1.0% of (Setting + Range)

Turbo mode OFF / ON

Short/OCP/OPP Test Function

Maximum Current: 400A / 600A

Meas. Accuracy: ± 1.0% of (Reading + Range)

Short time: 100~10000mS;Continuous / 100~10000mS

Meas. Accuracy: NA / NA

OCP Time (Tstep): 100mS / 200mS

Meas. Accuracy: NA / NA

OPP Time (Tstep): 100mS / 200mS

Meas. Accuracy: NA /NA

BMS Test Mode OFF/ON (Turbor mode OFF) / OFF/ON (Turbor mode ON)

Short time: 100mS~10S/0.05~10mS / 100~1000mS/0.05~10mS

Meas. Accuracy: NA/±0.005mS / NA/±0.005mS

OCP Time (Tstep): 100mS/0.05~10mS;11~1000mS / 20mS/0.05~10mS;11~1000mS

Meas. Accuracy: NA/±0.005mS;±0.2mS / NA/±0.005mS;±0.2mS

Surge Test Mode

Surge current: 0~600A

Normal current: 0~300A

Surge Time: 10~2000ms

Surge Step: 1~5

MPPT Mode

Algorithm: P&O

Load mode: CV

P&O interval: 1000-6000mS

Resolution: 1000mS

Dynamic Mode

Timing:

Thigh & Tlow: 0.010~9.999/99.99/999.9/mS

Resolution: 0.0001/0.01/0.1/1mS

Accuracy: 1/10/100/1000 uS+50ppm

Slew rate: 0.0256~1.600A/uS / 0.2560~16.000A/uS

Resolution: 0.0064A/uS / 0.064A/uS

Min. Rise Time: 25uS (Typ.)

Current:

Range: 0~40A / 40~400A

Resolution: 0.00064A / 0.0064A

Measurement

Voltage Read Back

Range (5 Digital): 0~15V / 15~150v

Resolution: 0.00025V / 0.0025V

Accuracy: ± 0.025% of (Reading + Range)

Current Read Back

Range (5 Digital): 0~40A / 40~400A

Resolution: 0.00064A / 0.0064A

Accuracy: ± 0.05% of (Reading + Range)

Power Read Back

Range (5 Digital): 4000W

Accuracy: ± 0.06% of (Reading + Range)

General

Typical Short Resistance: 0.0018Ω

Maximum Short Current: 400A

Load ON Voltage: 0.25~62.5V

Load OFF Voltage: 0~62.5V

Power Consumption: 550VA

Dimension (HxWxD): 177mm x 440mm x 745mm

Weight: 28kg

Temperature: 0~40℃

Safety & EMC: CE

Option card: GPIB, RS232, USB, LAN are option, prices are same as 331XF
