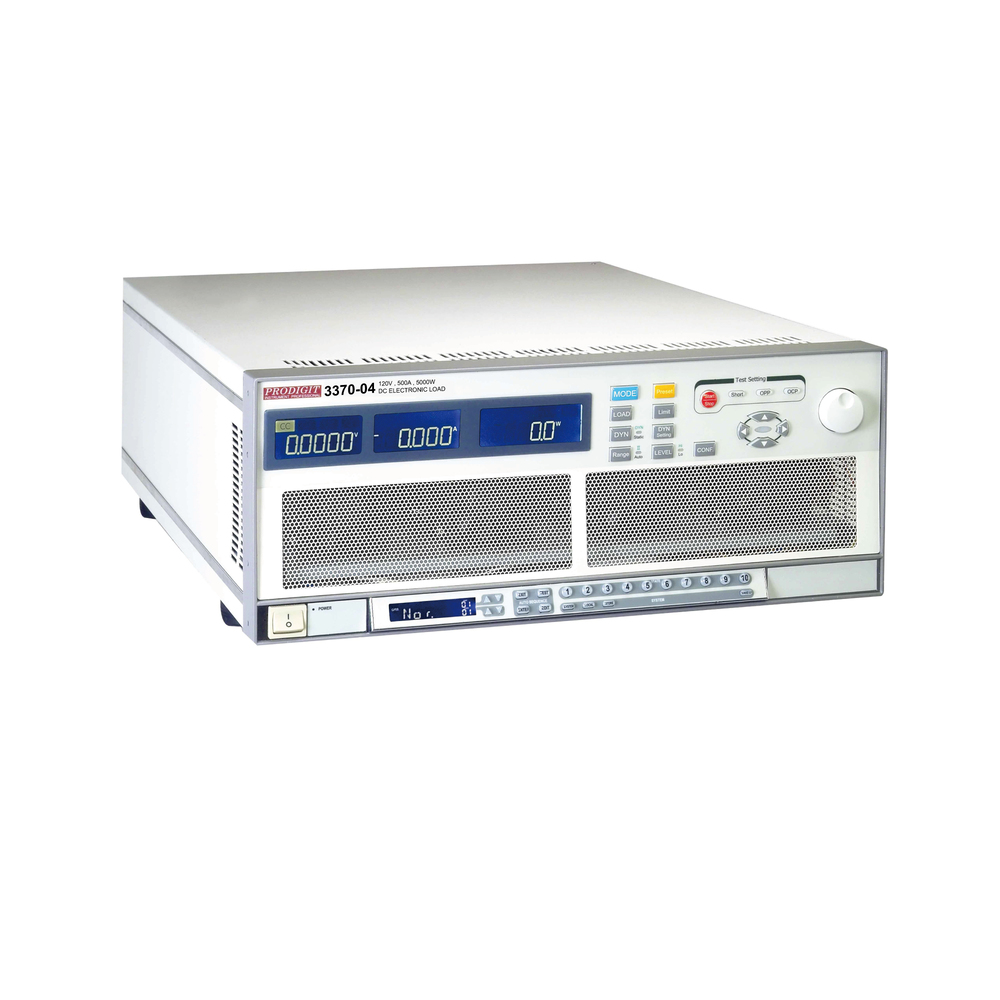

PRODIGIT 3370-04 Compact High Power DC Electronic Load (120V, 500A, 5000W)

Power: 5KW

Current: 0~100A/0~500A

Voltage: 0~120V

Min.Operation Voltage: 5V at 500A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~100A/0~500A

Resolution: 1.667mA/8.334mA

Accuracy: ±0.1%

CR mode:

Range: 0.01-0.24Ω/0.24-14400Ω

Resolution: 416.7uS/0.67uΩ

Accuracy: ±0.2%

CV mode:

Range: 120V

Resolution: 2mV

Accuracy: ±0.05%

CP mode:

Range: 500W/5000W

Resolution: 8.334mA/83.34mA

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 12V/12~120V, ±0.025%

Current : 0 ~ 100A/100~500A, ±0.1%

Power : 0 ~ 500W/5000W, ±0.125%

Short circuit current: 500A

Dimension (HxWxD): 194 x 483 x 666 mm

Weight: 45 kg

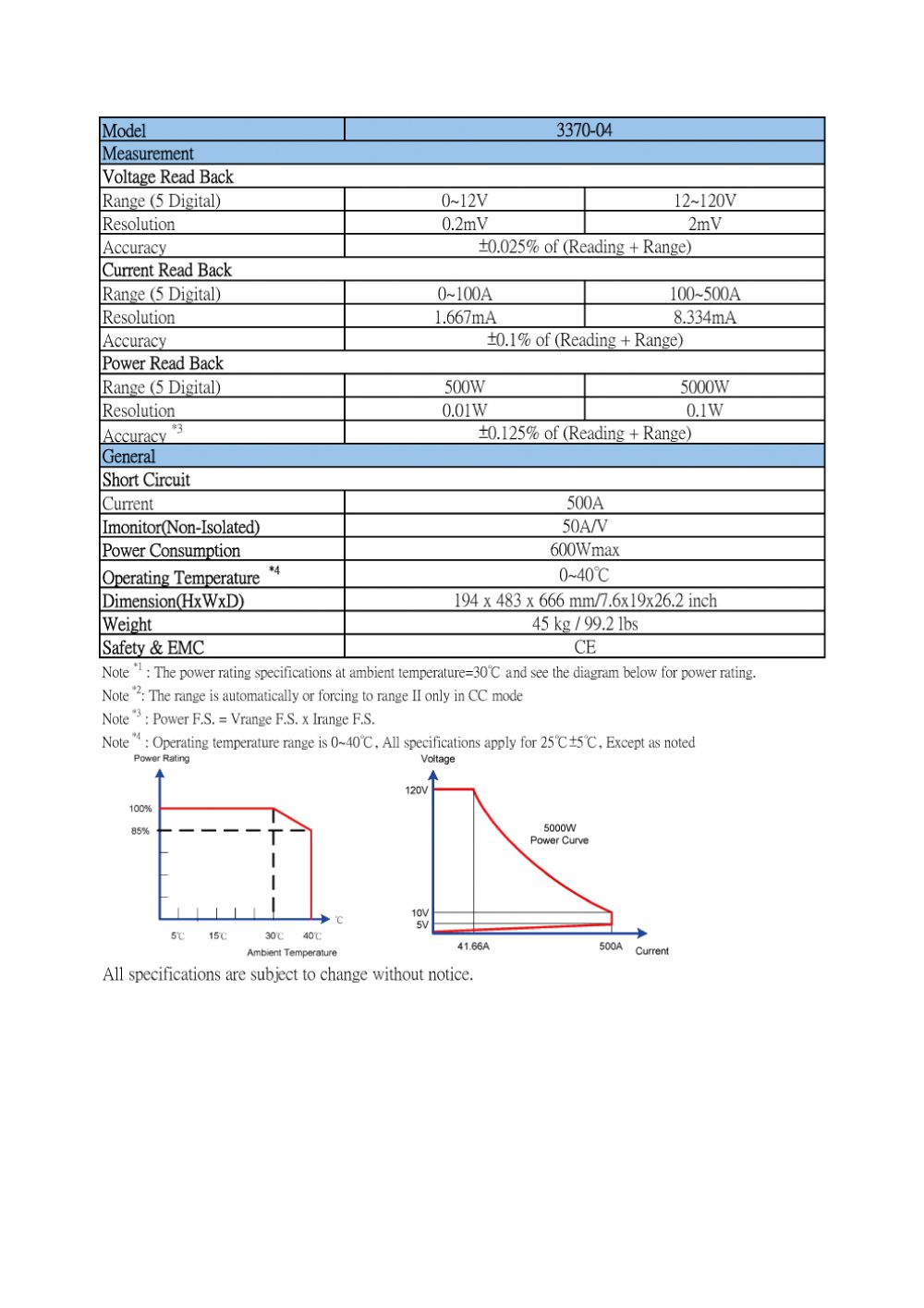

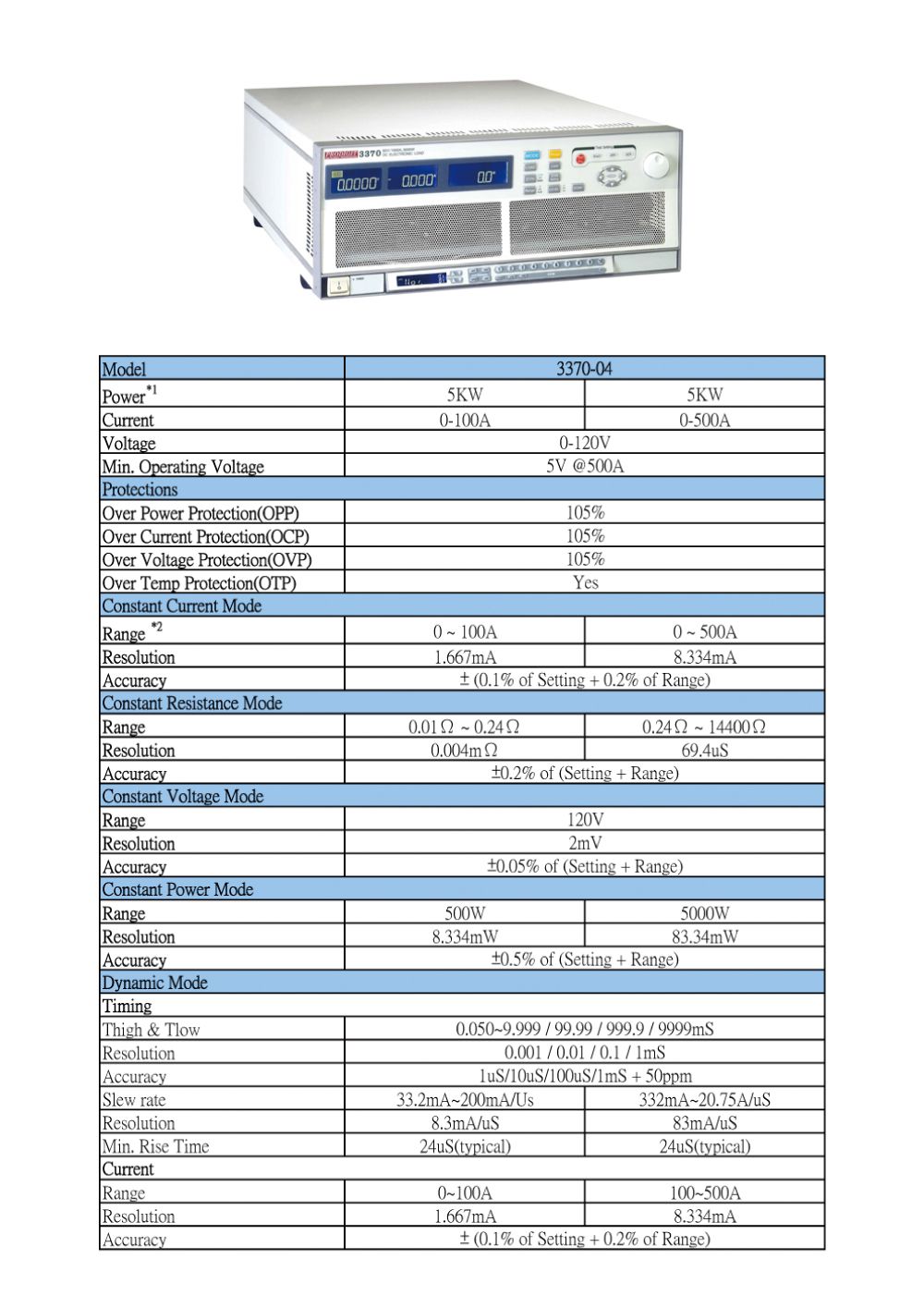

Datasheet
