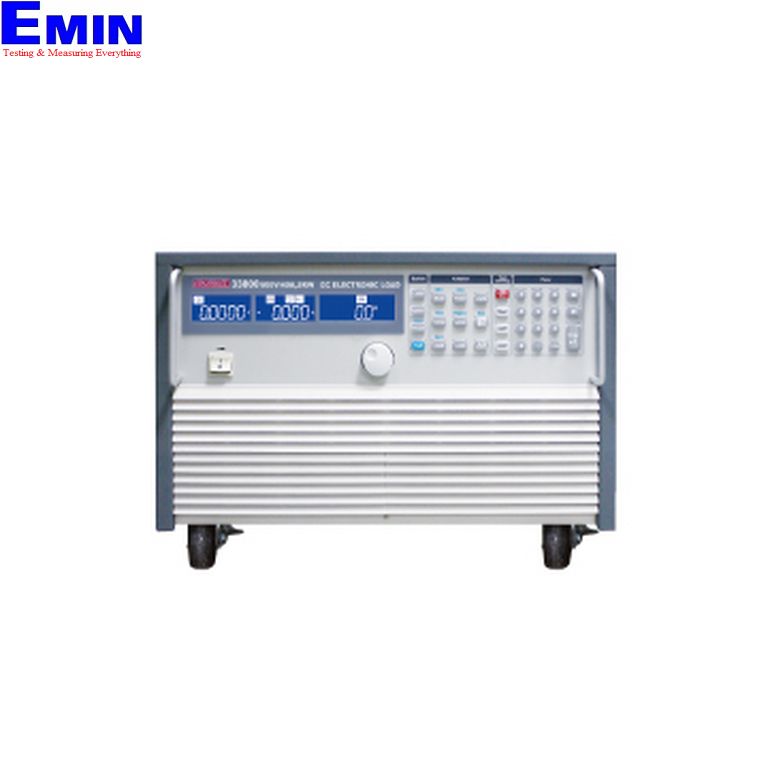

Compact High Power High Voltage DC Electronic load Prodigit 3380 (5KW, 40A, 600V)

Manufacturer: Prodigit Electronics - Taiwan
Model: 3380
Warranty: 12 months

Power input: 5KW
Current input: 40A
Voltage input: 600V

Display: V, A, W

Feature

● Compact size (1608H*448W*764Dmm) posses 40KW load capability

● 5 digit V/A/W Meter

● High-speed measurement and communication transmission

● Large LCD Display、setting values can be adjusted by rotary knob or push button

● Voltage 、Current and Watt value can be displayed simultaneously

● Capable for Power Factor Correction (PFC) Test

● OCP 、 OPP test function automatically

● Power ON status can be set

● CC, CR, CV, CP, Dynamic and Short operation mode

● SHORT time setting

● Protections against V,I,W, and ℃

● Voltage meter display the polarity positive (”+”）or negative（”－”）is selectable

● Optional Interface: GPIB、RS232、USB、LAN

Description

‧3380 Series has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232、USB and LAN interface.

‧SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

‧Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
