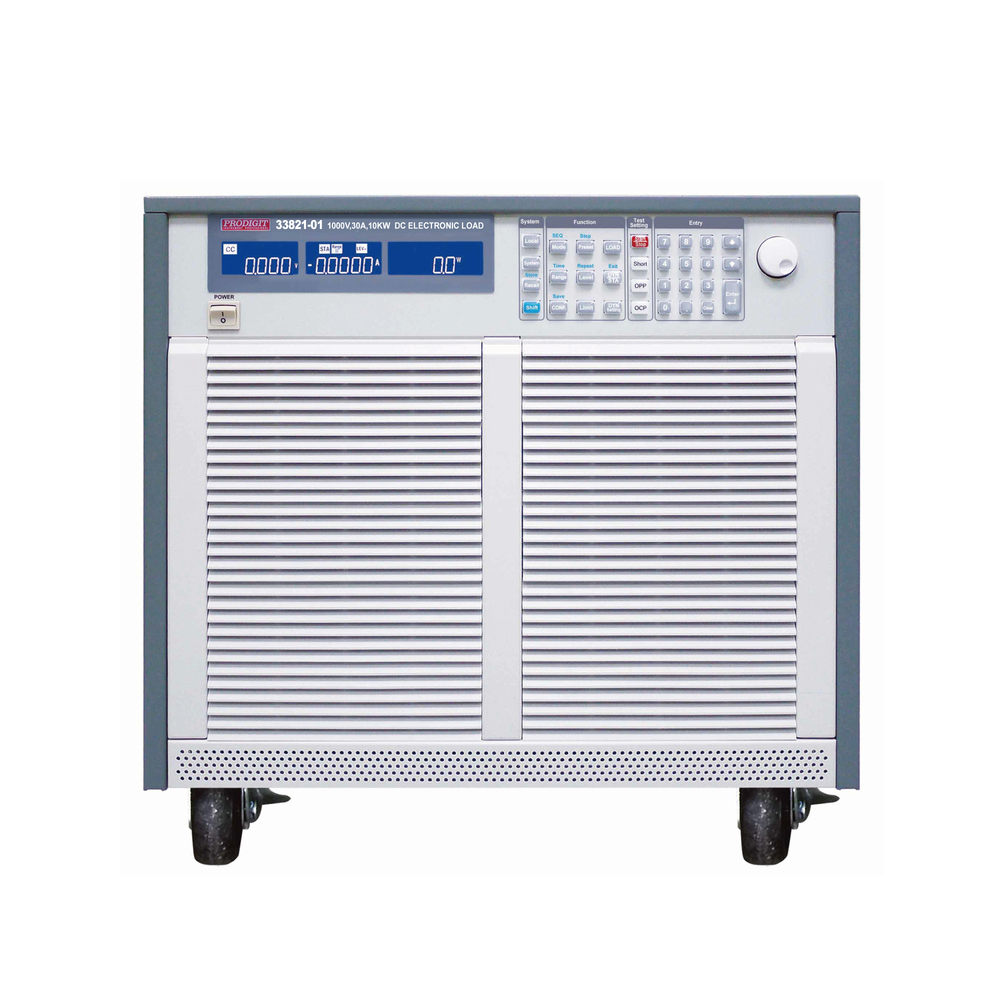

PRODIGIT 33821-01 Compact High Power DC Electronic Load (1000V, 30A, 10KW)

Power: 10KW

Current: 0~3A/0~30A

Voltage: 50~1000V

Min.Operation Voltage: 50V at 30A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~3A/0~30A

Resolution: 0.05mA/0.5mA

Accuracy: 0.1% setting + 0.2% range

CR mode:

Range: 1.668-33.33Ω/33.33-2MΩ

Resolution: 0.556Ω/0.5uS

Accuracy: ±0.2%

CV mode:

Range: 50.1~1000V

Resolution: 16.67mV

Accuracy: ±0.05%

CP mode:

Range: 1000W/10000W

Resolution: 16.7mW /167mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 100V/100~1000V, ±0.025%

Current : 0 ~ 3A/3~30A, ±0.1%

Power : 0 ~ 1000W/10KW, ±0.65%

Short circuit current: 30A

Dimension (HxWxD): 534 x 448 x 764 mm

Weight: 110 kg

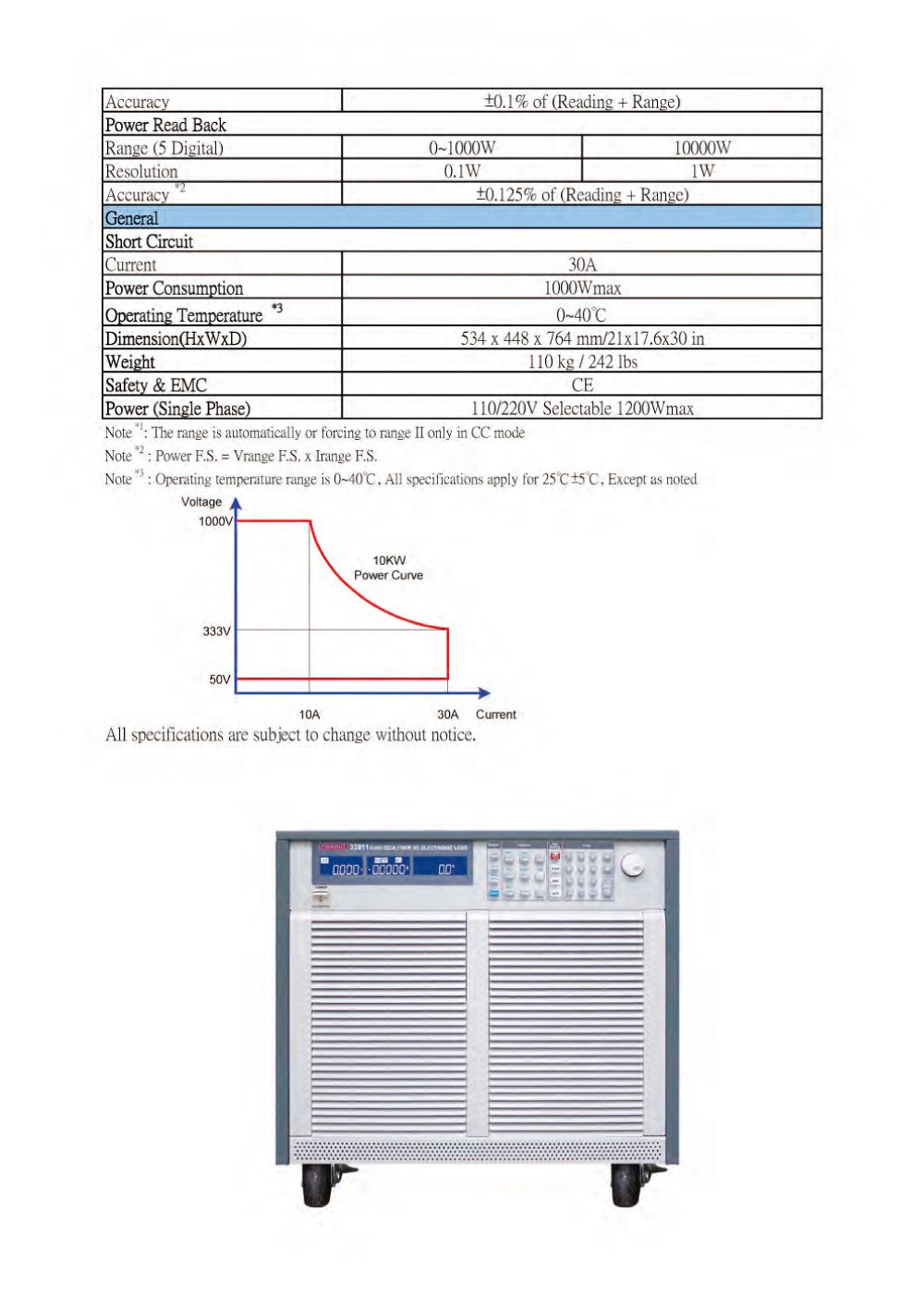

Datasheet
