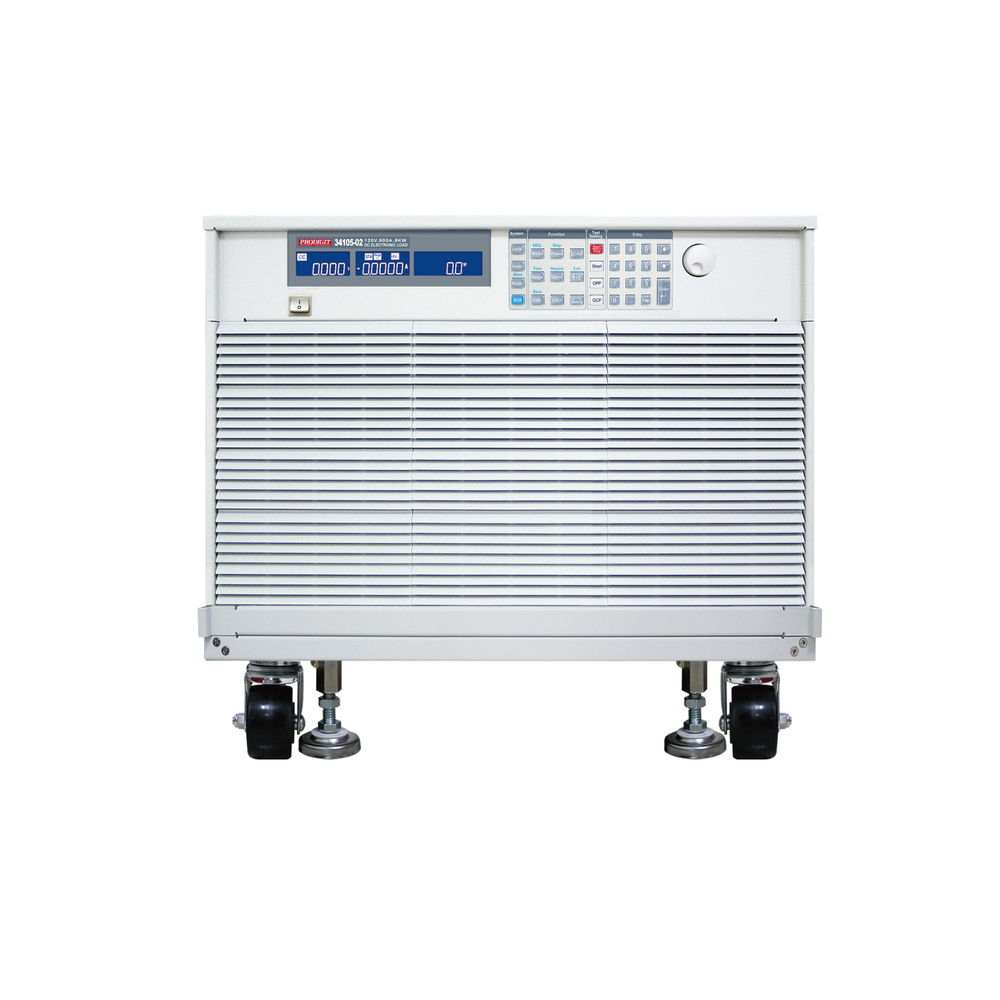

PRODIGIT 34105-02 Compact High Power DC Electronic Load (120V, 500A, 5KW)

Power: 5KW

Current: 0~50A/0~500A

Voltage: 0~120V

Min.Operation Voltage: 0.2V at 50A/2V at 500A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~50A/0~500A

Resolution: 0.843mA/8.43mA

Accuracy: ±0.1%

CR mode:

Range: 14400~0.24Ω/0.24~0.004Ω

Resolution: 69.444uS/4uΩ

Accuracy: ±0.2%

CV mode:

Range: 120V

Resolution: 2mV

Accuracy: ±0.05%

CP mode:

Range: 500W/5000W

Resolution: 8.34mW/83.4mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 12V/12~120V, ±0.025%

Current : 0 ~ 50A/50~500A, ±0.1%

Power : 0 ~ 500W/5000W, ±0.125%

Short circuit current: 500A

Dimension (HxWxD): 577 x 647 x 766 mm

Weight: 100 kg

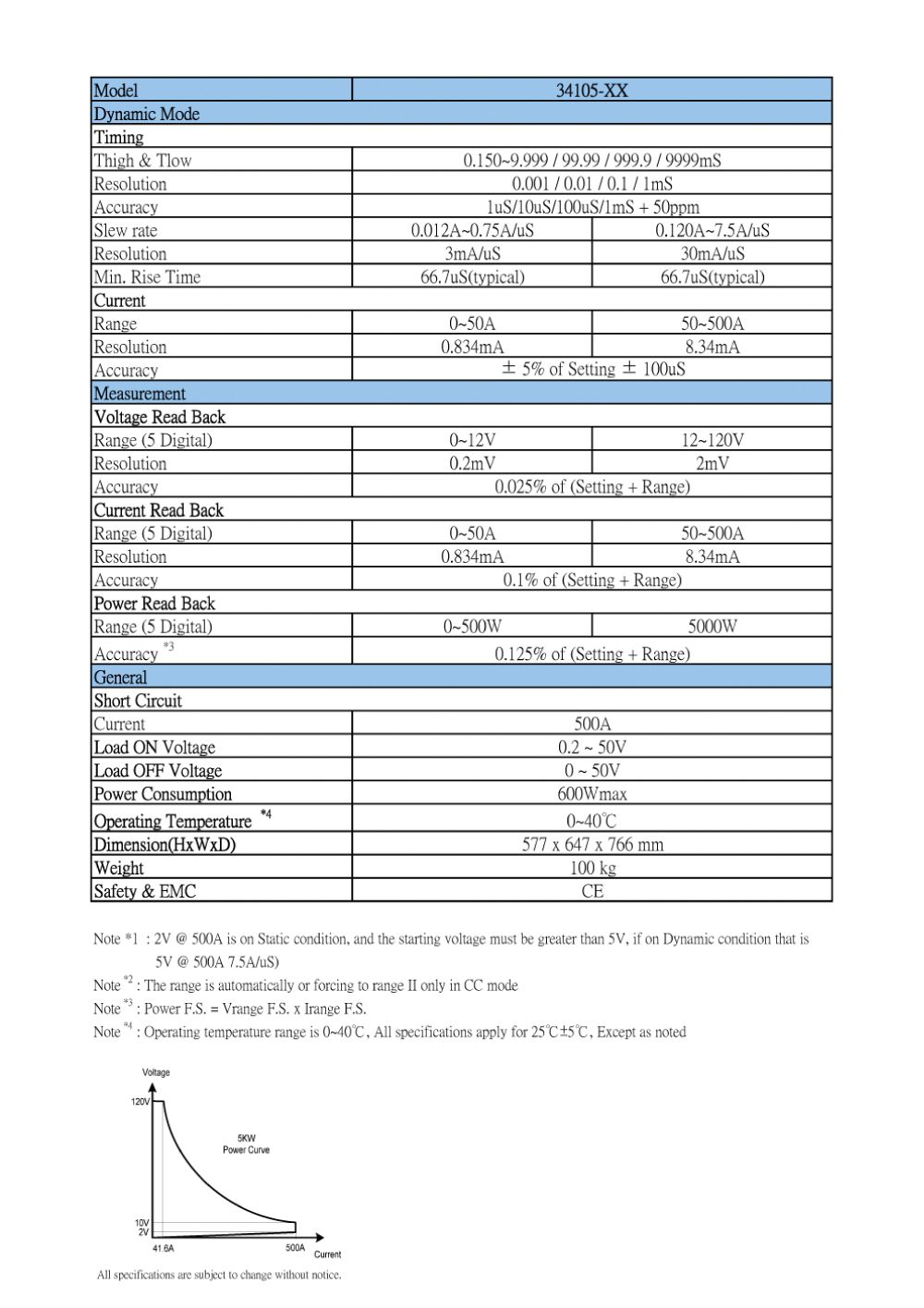

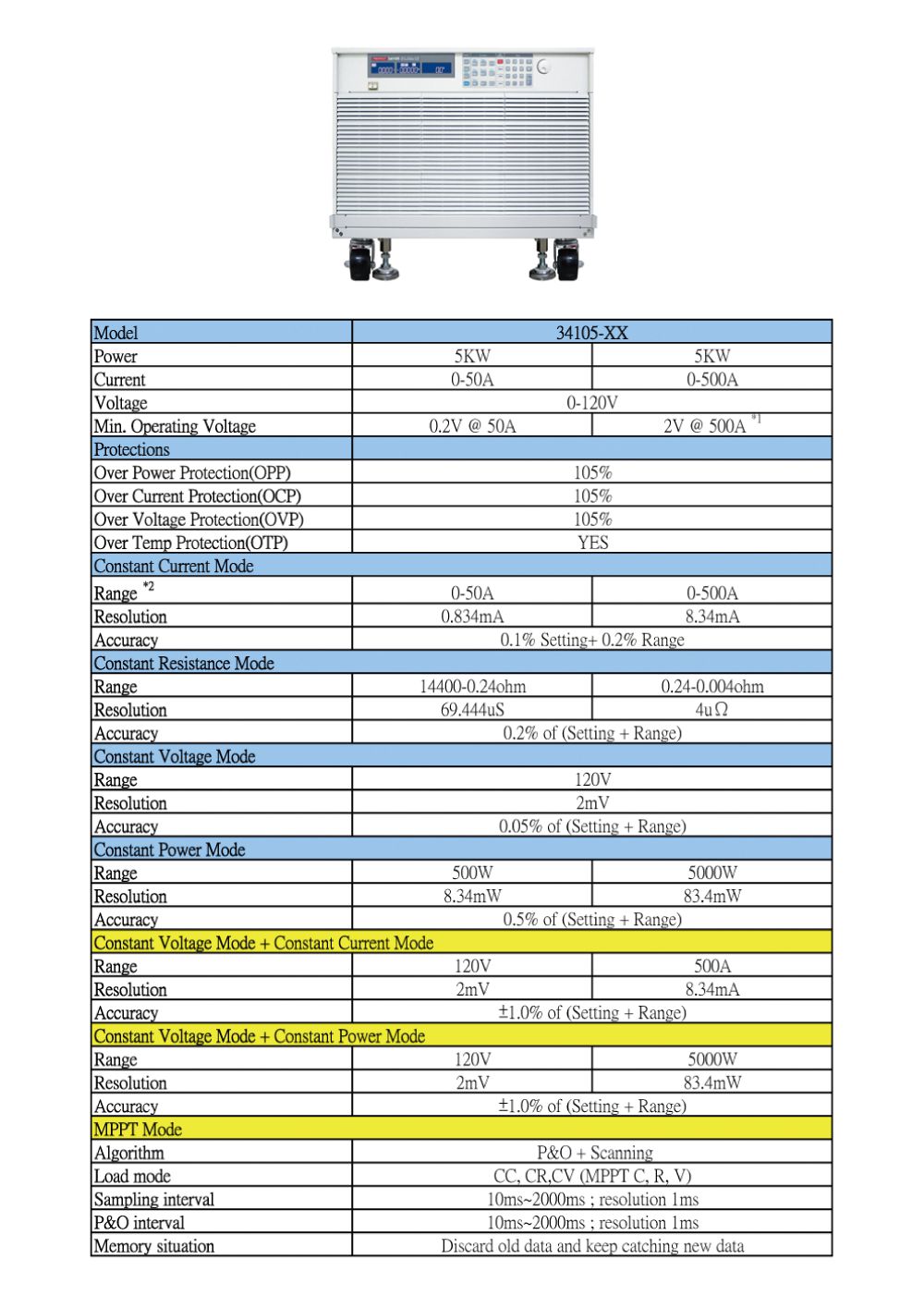

Datasheet
