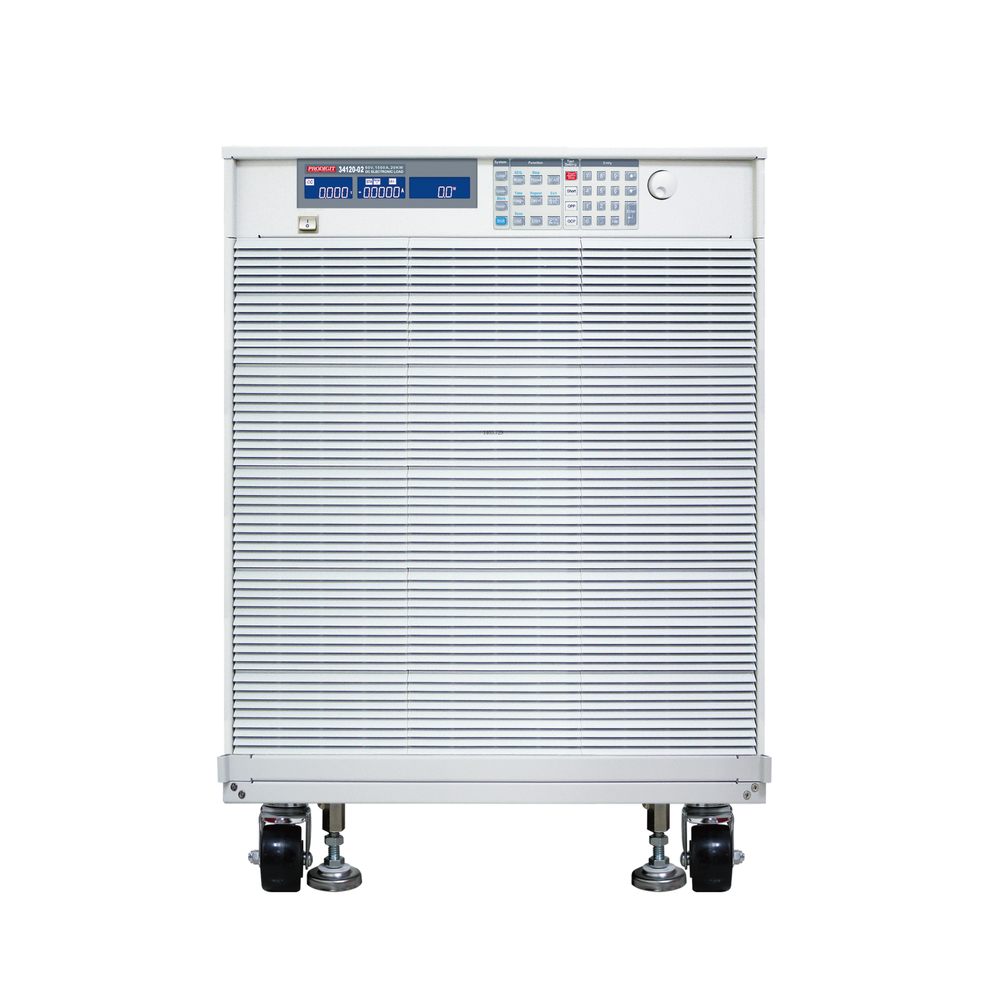

PRODIGIT 34120-02 Compact High Power DC Electronic Load (60V, 1500A, 20KW)

Power: 20KW

Current: 0~150A/0~1500A

Voltage: 0~60V

Min.Operation Voltage: 0.1V at 150A/0.7V at 1500A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 105%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~150A/0~1500A

Resolution: 2.5mA/26mA

Accuracy: ±0.1%

CR mode:

Range: 2400-0.04Ω/0.04-0.0005Ω

Resolution: 416.7uS/0.67uΩ

Accuracy: ±0.2%

CV mode:

Range: 60V

Resolution: 1mV

Accuracy: ±0.05%

CP mode:

Range: 2000W/20000W

Resolution: 33.4mA/334mA

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 6V/6~60V, ±0.025%

Current : 0 ~ 150A/150~1500A, ±0.1%

Power : 0 ~ 2000W/20000W, ±0.125%

Short circuit current: 1500A

Dimension (HxWxD): 889 x 647 x 766 mm

Weight: 220 kg

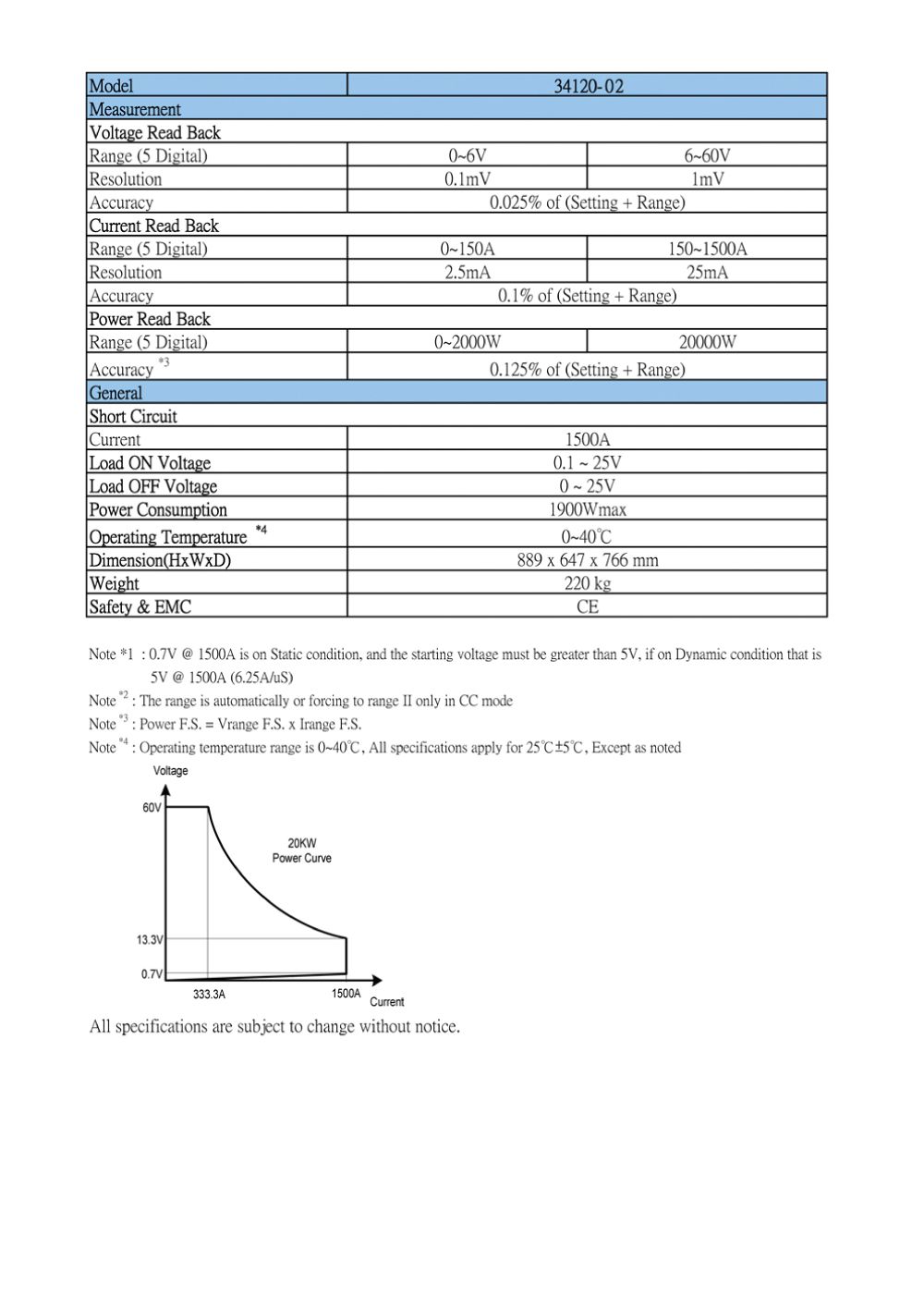

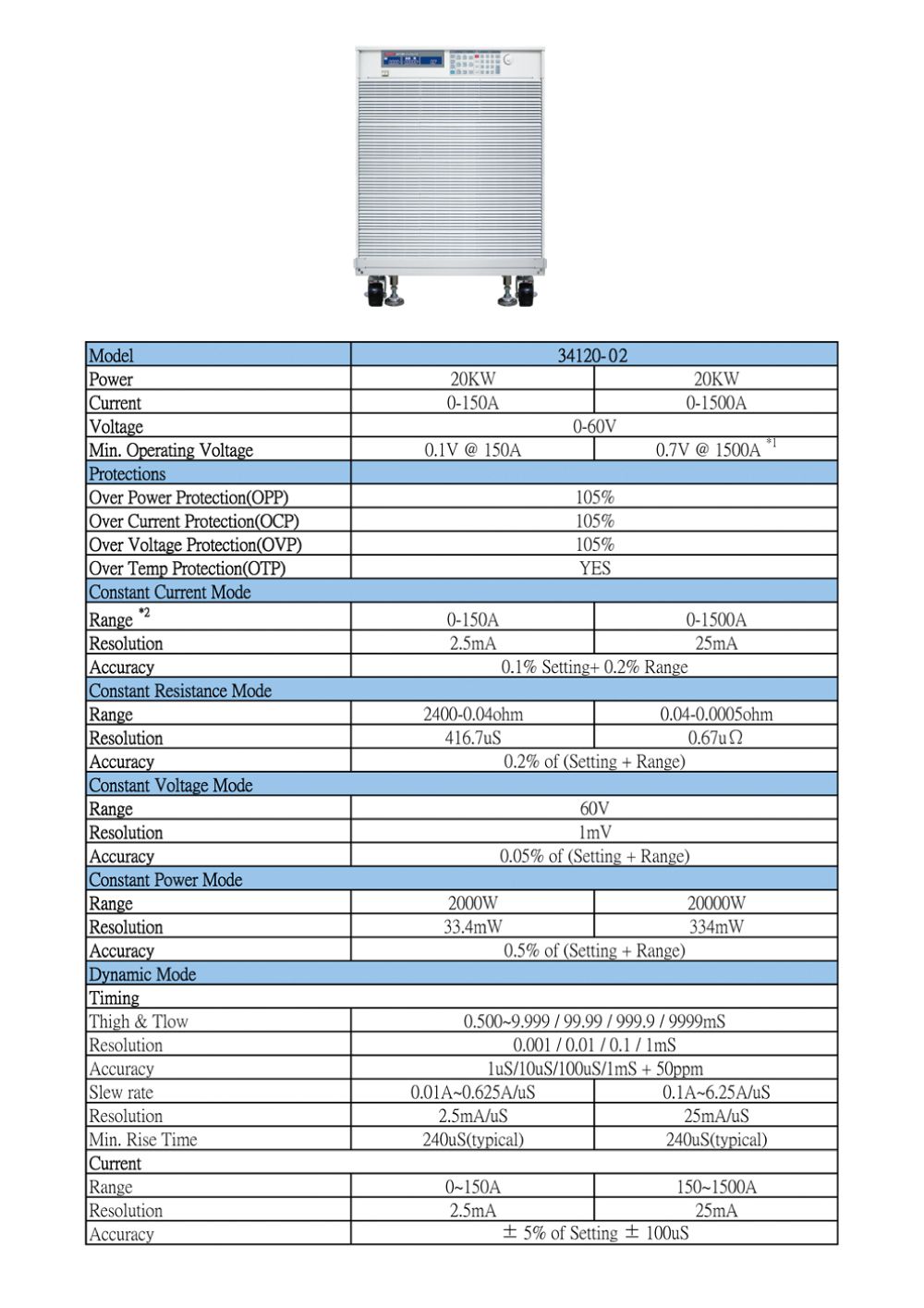

Datasheet
