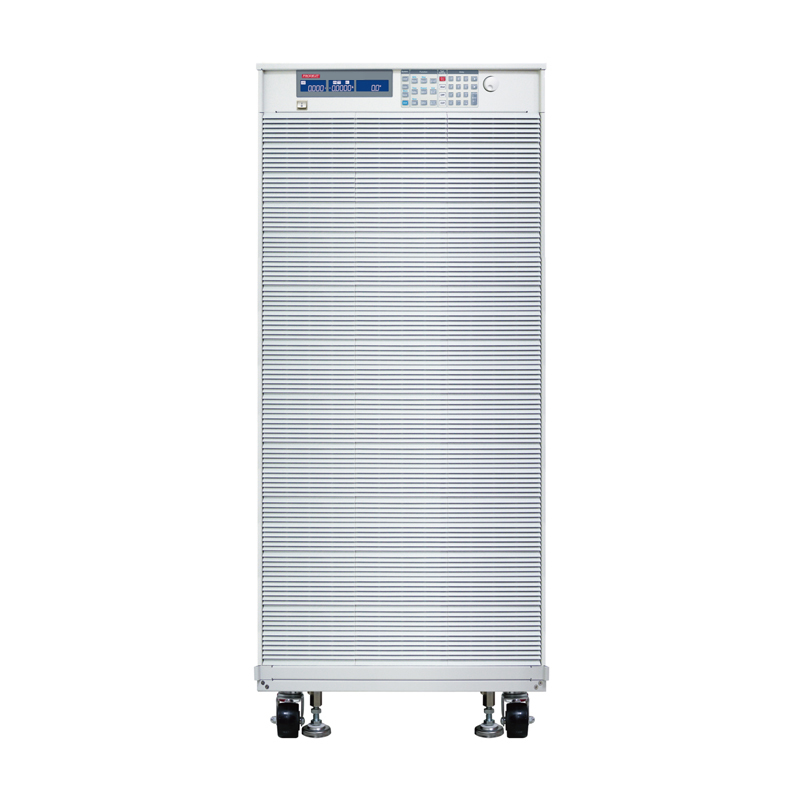

PRODIGIT 34140A Compact High Power DC Electronic Load (60V,1000A,40KW)

Power: 40KW

Current: 0~100A/0~1000A

Voltage: 0~60V

Min.Operation Voltage: 0.1V at 100A/0.7V at 1000A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 0~100A/0~1000A

Resolution: 1.6mA/16mA

Accuracy: ±(0.1% of Setting + 0.2% of Range)

CR mode:

Range: 0.06~3600Ω/0.001~0.06Ω

Resolution: 277uS/0.001mΩ

Accuracy: ±0.2%

CV modes:

Range: 60V

Resolution: 1mV

Accuracy: ±0.05%

CP mode:

Range: 4000W/40000W

Resolution: 64mW/640mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 6V/6~60V, ±0.025%

Current : 0 ~ 100A/100~1000A, ±0.1%

Power : 10000W/40000W, ±0.125%

Short circuit current: 1000A

Dimension (HxWxD): 1509x647x766mm

Weight: 430 kg

Optional interface: GPIB, RS264, USB, LAN
