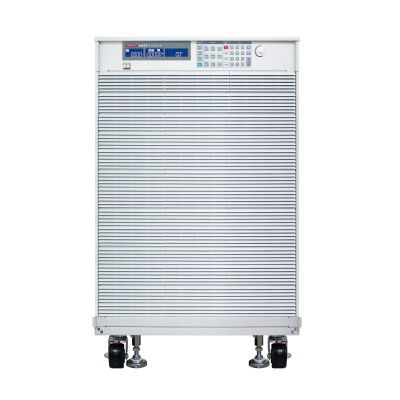

Prodigit 34225A Compact High Power DC Electronic Load (25KW, 800A,600V)

Power: 25KW
Current: 0~80A/0~800A
Voltage: 0~600V
Min.Operation Voltage: 10V@800A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 80A/0~800A
Resolution: 1.334mA/13.34mA
Accuracy: ±0.1%
CR mode:
Range: 0.75~11250Ω/0.0078~0.75Ω
Resolution: 0.0222mS/0.013mΩ
Accuracy: ±0.2%
CV mode:
Range: 600V
Resolution: 10mV
Accuracy: ±0.05%
CP mode:
Range: 2500W/25000W
Resolution: 41.7mW/417mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 60V/60~600V, ±0.025%
Current : 0 ~ 80A/80~800A, ±0.1%
Power : 2500W/25000W, ±0.125%
Short circuit current: 800A
Dimension (HxWxD): 1041 x 647 x 766 mm
Weight: 280 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
