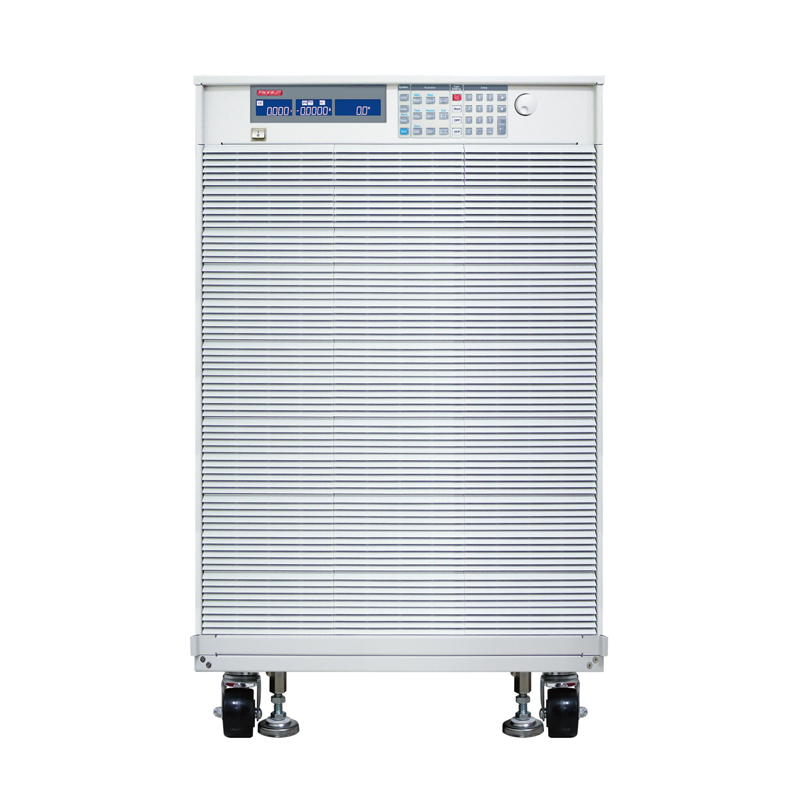

PRODIGIT 34235A Compact High Power DC Electronic Load (35000W, 1120A/600V)

Power: 35KW

Current: 0~112A/0~1120A

Voltage: 0~600V

Min.Operation Voltage: 10V at 1120A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 112A/1120A

Resolution: 1.792mA/17.92mA

Accuracy: ±0.1%

CR mode:

Range: 6428.4Ω~0.5357Ω /0.5357Ω~0.009Ω

Resolution: 31.1μs /0.009mΩ

Accuracy: ±0.2%

CV mode:

Range: 600V

Resolution: 10mV

Accuracy: ±0.05%

CP mode:

Range: 3500W/35000W

Resolution: 56mW/560mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 60V/60~600V, ±0.025%

Current : 0 ~ 112A/112~1120A, ±0.1%

Power : 10000W/35000W, ±0.125%

Short circuit current: 1120A

Dimension (HxWxD): 1353x647x766mm

Weight: 390 kg

Optional interface: GPIB, RS232, USB, LAN
