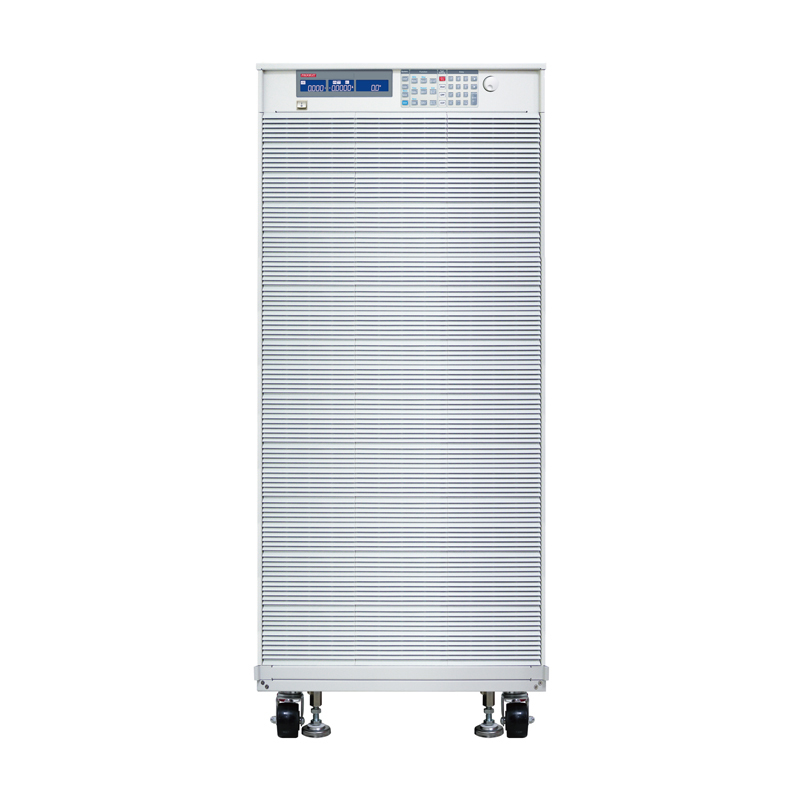

PRODIGIT 34240A Compact High Power DC Electronic Load (600V,1280A,40KW)

Power: 40KW

Current: 0~128A/0~1280A

Voltage: 0~600V

Min.Operation Voltage: 10V at 1280A

Protections:

Over Power Protection (OPP): 105%

Over Current Protection (OCP): 104%

Over Voltage Protection (OVP): 105%

Over Temp Protection (OTP): Yes

CC mode:

Range: 128A/1280A

Resolution: 2.048mA /20.48mA

Accuracy: ±0.1%

CR mode:

Range: 5625Ω ~ 0.46875Ω / 0.46875Ω~0.00787Ω

Resolution: 35.5μs/ 0.007875mΩ

Accuracy: ±0.2%

CV mode:

Range: 600V

Resolution: 10mV

Accuracy: ±0.05%

CP mode:

Range: 4000W/40000W

Resolution: 64mW/640mW

Accuracy: ±0.5%

Measurement mode (Load):

Voltage: 0 ~ 60V/60~600V, ±0.025%

Current : 0 ~ 128A/128~1280A, ±0.1%

Power : 10000W/40000W, ±0.125%

Short circuit current: 1280A

Dimension (HxWxD): 1509x647x766mm

Weight: 430kg

Optional interface: GPIB, RS232, USB, LAN
