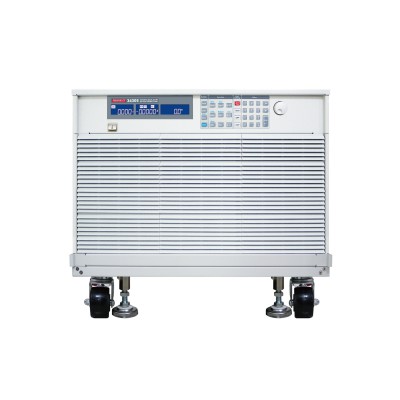

Prodigit 34305A Compact High Power DC Electronic Load (5KW,5A/50A,1000V)

Power: 5KW
Current: 0~5A/0~50A
Voltage: 0~1000V
Min.Operation Voltage: 20V@50A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 104%
Over Voltage Protection (OVP): 104%
Over Temp Protection (OTP): Yes
CC mode:
Range: 5A/50A
Resolution: 0.08mA/0.8mA
Accuracy: ±0.1%
CR mode:
Range: 20~24000Ω/0.4008~20Ω
Resolution: 0.833uS/0.334mΩ
Accuracy: ±0.2%
CV mode:
Range: 20~1000V
Resolution: 16mV
Accuracy: ±0.05%
CP mode:
Range: 500W/5000W
Resolution: 8mW/80mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 100V/100~1000V, ±0.025%
Current : 0 ~ 5A/5~50A, ±0.1%
Power : 500W/5000W, ±0.125%
Short circuit current: 50A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 100 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
