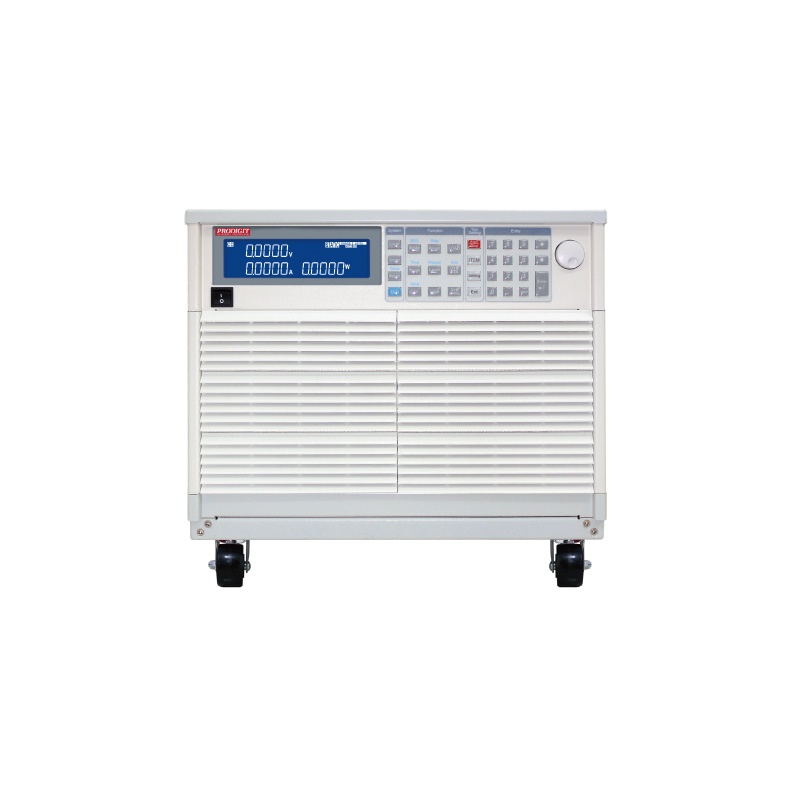

PRODIGIT 34308C Compact High Power DC Electronic Load (1200V, 320A, 8KW)

Power: 8KW

Current: 0 ~ 32A; 0 ~ 320A

Voltage: 0 ~ 1200V

Min. Operating Voltage: 15V at 320A

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 32A; 320A

Constant Resistance Mode Range: 22.5KΩ~3.75Ω; 3.75Ω~0.0468Ω

Constant Voltage Mode Range: 1200V

Constant Power Mode Range: 800W; 8000W

Constant Voltage Mode + Constant Current Mode Range: 1200V; 320A

Constant Voltage Mode + Constant Power Mode Range: 1200V; 8000W

Surge & Normal current: 0~320A

Dynamic Mode:

- Timing: 0.010~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~32A; 32~320A

Measurement

- Voltage Read Back Range (5 Digital): 0~120V; 120~1200V

- Current Read Back Range (5 Digital): 0~32A; 32~320A

- Power Read Back Range: 8000W

Typical Short Resistance: 0.0469Ω

Maximum Short Current: 320A

Load ON Voltage: 0.96 ~ 320V

Load OFF Voltage: 0 ~ 320V

Power Consumption: 750VA

Dimension (HxWxD): 572x444x763mm

Weight: 77.5 kg

Temperature: 0~40℃
