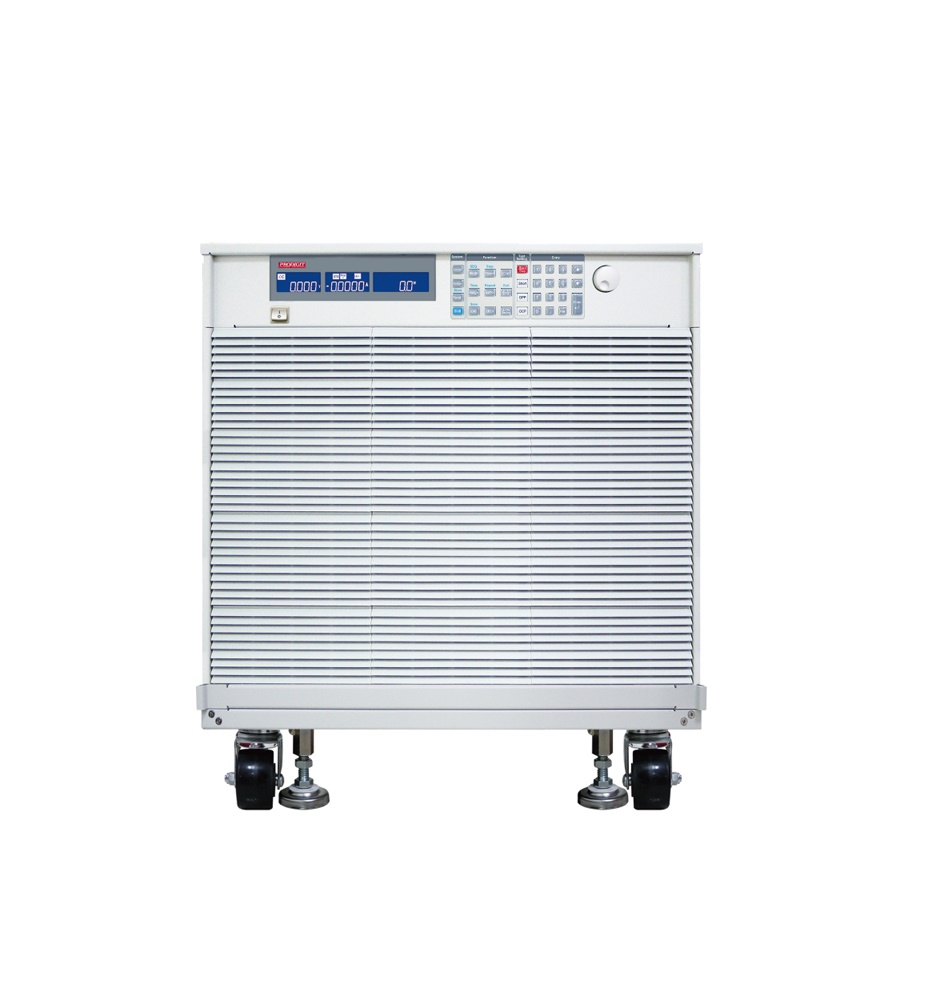

PRODIGIT 34315E Compact High Power DC Electronic Load (1250V, 75A, 15KW)

Power: 15KW

Current: 0 ~ 7.5A; 0 ~ 75A

Voltage: 0 ~ 1250V

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 7.5A; 75A

Constant Resistance Mode Range: 20004Ω~16.67Ω; 16.67Ω~0.834Ω

Constant Voltage Mode Range: 1250V

Constant Power Mode Range: 1500W; 15000W

Constant Voltage Mode + Constant Current Mode Range: 1250V; 75A

Constant Voltage Mode + Constant Power Mode Range: 1250V; 15000W

Dynamic Mode:

- Timing: 0.015~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~7.5A; 5~75A

Measurement

- Voltage Read Back Range (5 Digital): 0~150V; 150~1250V

- Current Read Back Range (5 Digital): 0~7.5A; 7.5~75A

- Power Read Back Range: 1000W; 15000W

Short Current: 75A

Power Consumption: 1450Wmax

Dimension (HxWxD): 728x647x766mm

Weight: 170 kg

Temperature: 0~40℃
