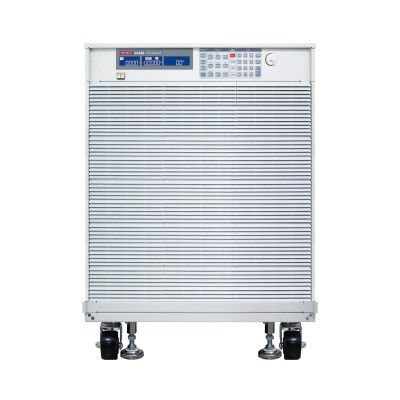

Prodigit 34320A Compact High Power DC Electronic Load (20KW,200A,1000V)

Power: 20KW
Current: 0~20A/0~200A
Voltage: 0~1000V
Min.Operation Voltage: 20V@200A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 104%
Over Voltage Protection (OVP): 104%
Over Temp Protection (OTP): Yes
CC mode:
Range: 20A/200A
Resolution: 0.32mA/3.2mA
Accuracy: ±0.1%
CR mode:
Range: 5~6000Ω/0.1008~5Ω
Resolution: 3.33uS/0.084mΩ
Accuracy: ±0.2%
CV mode:
Range: 20~1000V
Resolution: 16mV
Accuracy: ±0.05%
CP mode:
Range: 2000W/20000W
Resolution: 32mW/320mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 100V/100~1000V, ±0.025%
Current : 0 ~ 20A/20~200A, ±0.1%
Power : 2000W/20000W, ±0.125%
Short circuit current: 200A
Dimension (HxWxD): 885 x 647 x 766 mm
Weight: 220 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
