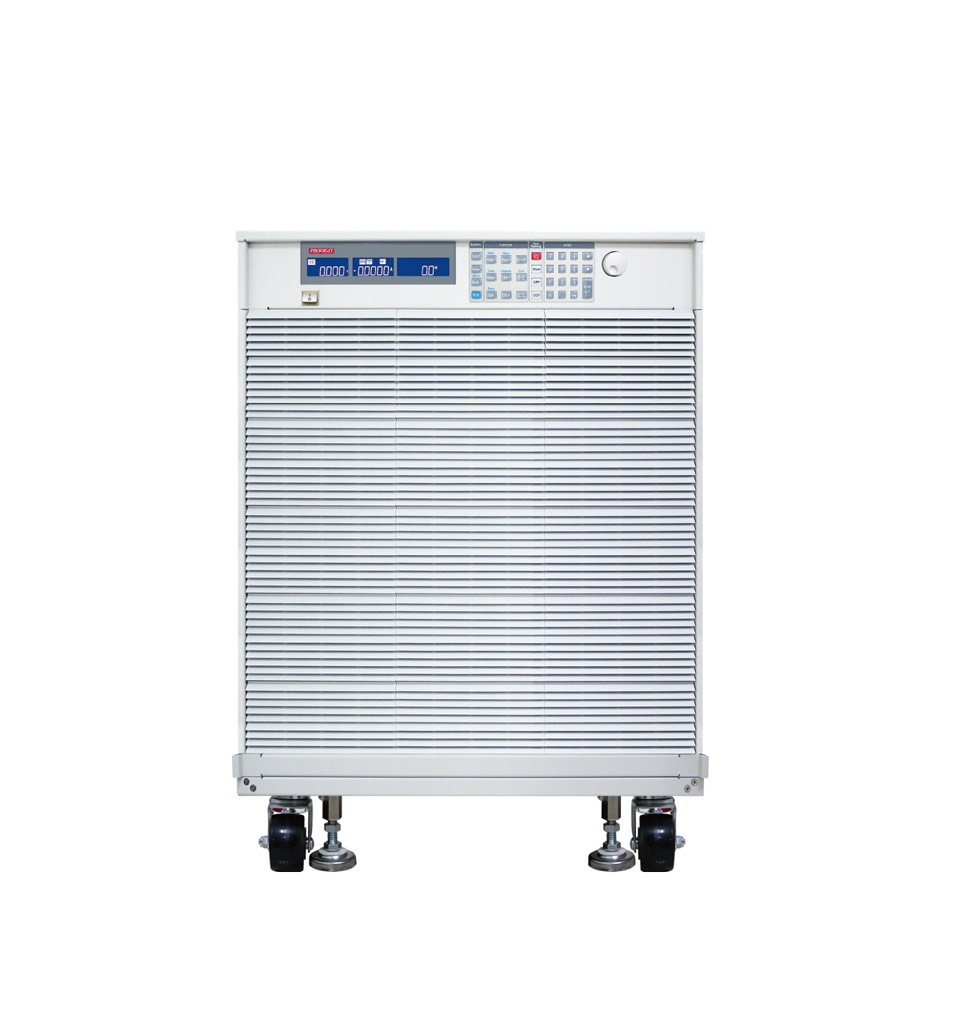

PRODIGIT 34320E Compact High Power DC Electronic Load (1250V, 100A, 20KW)

Power: 20KW

Current: 0 ~ 10A; 0 ~ 100A

Voltage: 0 ~ 1250V

Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)

Constant Current Mode Range: 10A; 100A

Constant Resistance Mode Range: 15000Ω~12.5Ω; 12.5Ω~0.627Ω

Constant Voltage Mode Range: 1250V

Constant Power Mode Range: 2000W; 20000W

Constant Voltage Mode + Constant Current Mode Range: 1250V; 100A

Constant Voltage Mode + Constant Power Mode Range: 1250V; 20000W

Dynamic Mode:

- Timing: 0.020~9.999 / 99.99 / 999.9 / 9999mS

- Current: 0~10A; 5~100A

Measurement

- Voltage Read Back Range (5 Digital): 0~200V; 200~1250V

- Current Read Back Range (5 Digital): 0~10A; 10~100A

- Power Read Back Range: 1000W; 20000W

Short Current: 100A

Power Consumption: 1900Wmax

Dimension (HxWxD): 885x647x766mm

Weight: 220 kg

Temperature: 0~40℃
